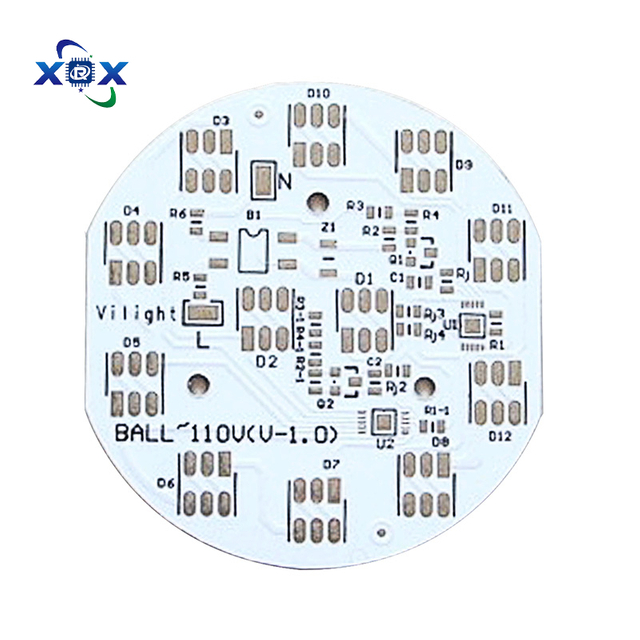

At Xinrongxing PCB, we specialize in manufacturing LED PCBs, designed for optimal heat dissipation, reliability, and efficiency. LED PCB technology has evolved into the foundation of many innovative lighting products. In LED applications, chips are soldered directly onto the circuit board, producing light when electrically connected. To manage heat, heat sinks and ceramic bases are often used to attach the chips, cooling the LEDs during operation.
LED PCBs are crucial because LEDs generate substantial heat, and conventional cooling methods are often insufficient. This is why LED circuit boards are designed to enhance thermal management, with aluminum substrates being particularly popular. Aluminum PCBs typically include a thin layer of thermally conductive dielectric material, which efficiently relocates and dissipates heat, offering superior performance compared to standard rigid PCBs.
| Parameter | Specification |
|---|---|
| Base Materials | Aluminum, FR-4, CEM-1 |
| Board Thickness | 0.4 mm – 3.2 mm |
| Copper Thickness | 1 oz – 2 oz (customizable) |
| Thermal Conductivity | Up to 10 W/m·K |
| Surface Finishes | HASL, Lead-Free HASL, OSP, ENIG |
| Solder Mask Colors | Green, Black, White, Red, Blue, Yellow |
| Flame Retardant Rating | UL 94V-0 |
| Typical Applications | LED lighting, automotive lighting, signage, medical devices |
LED PCBs are widely used where efficient heat management and reliable operation are critical:
LED Lighting – Street lights, floodlights, downlights
Automotive Lighting – Headlights, interior lighting, indicator lights
Medical Devices – Diagnostic and surgical equipment
Signage & Displays – Digital billboards, advertising panels
Enhanced Thermal Management: Aluminum substrates and thermally conductive dielectric layers efficiently dissipate heat, extending LED lifespan.
Compact and High-Density Design: Supports more LEDs on a smaller board for compact lighting modules.
Customizable Solutions: Rigid and flexible designs to meet specific lighting and spatial requirements.
Cost-Effective Manufacturing: Balances performance, thermal efficiency, and affordability.
Innovation in Lighting Products: Enables the development of advanced LED systems with high performance and reliability.
Advanced Manufacturing Capabilities: Precision etching, drilling, and assembly with state-of-the-art equipment.
Strict Quality Control: Compliance with IPC standards, UL & RoHS certification available.
Flexible Order Quantities: From small prototypes to mass production.
Fast Lead Time: Prototypes in 3–5 days, bulk production in 7–15 working days.
OEM / ODM Support: Tailored LED PCB designs for specific applications.
Competitive Pricing: Affordable without compromising quality.
Common materials include Aluminum, FR-4, and CEM-1. Aluminum is preferred for high-power or high-density LED applications.
