If you've ever opened up an electronic gadget, you've seen the heart of the device: the Printed Circuit Board (PCB). That green (or sometimes blue, red, or black) board with intricate copper lines is what brings electronics to life. But not all PCBs are created equal.
While simple devices might use a single-sided board, the vast majority of modern electronics rely on a more sophisticated solution: the double-sided PCB.
In this post, we'll break down what a double-sided PCB is, why it's so useful, and how it bridges the gap between simple and highly complex electronics.

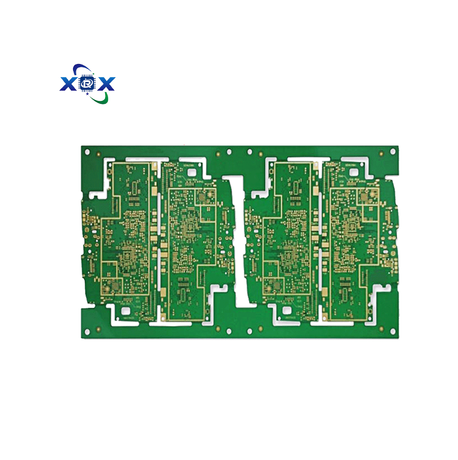

As the name suggests, a double-sided PCB has conductive copper layers on both the top and the bottom of the board. The components can be soldered onto both sides, and the two layers are connected by small holes drilled through the board and plated with metal, called vias.
Think of it like a two-story building. A single-sided PCB is a single-story house with all the rooms on one floor. A double-sided PCB is a two-story building, where you can use both floors and connect them with a staircase (the via) to make the layout much more efficient.
The single biggest benefit of moving from a single-sided to a double-sided board is the dramatic increase in routing density.
On a single-sided board, all the copper traces must avoid crossing each other on the same layer. This can be like trying to solve a complex puzzle and often requires a larger board or more creative (and sometimes less efficient) routing.
With two layers, designers have much more freedom:
Traces can cross over from the top to the bottom layer using a via.
Component placement is far more flexible.
The overall board size can be significantly reduced.
This allows for more complex circuits in a smaller footprint, which is essential for today's compact and powerful devices.
The connection between the two layers is the most critical part of a double-sided PCB. This is achieved through Plated-Through Holes (PTH).
Drilling: After the two separate copper layers are fabricated, tiny holes are drilled through the entire board at the locations where connections are needed.
Plating: The walls of these holes are then electroplated with a thin layer of copper, creating an electrical bridge between the top and bottom layers.
Soldering: Components with leads (like resistors or capacitors) can be inserted through these holes and soldered on the opposite side. Surface-Mount Devices (SMDs) can also be soldered directly to pads on either side, with vias used solely for inter-layer connection.
Double-sided PCBs are the workhorses of the electronics industry. You'll find them in a huge range of products, including:
Automotive Electronics: Engine control units, dashboards, and LED lighting.
Consumer Electronics: Televisions, gaming consoles, and home appliances.
Industrial Controls: Power supplies, sensors, and automation systems.
Medical Devices: Patient monitors and diagnostic equipment.
LED Lighting Systems: Both commercial and residential lighting fixtures.
They offer the perfect balance of cost, complexity, and reliability for these applications.
Is a double-sided PCB the same as a multi-layer PCB? Not quite. A double-sided PCB has exactly two conductive layers. A multi-layer PCB has three or more, often sandwiched inside the board with insulating layers in between.
While double-sided boards are a huge step up from single-sided ones, highly complex devices like smartphones, laptops, and servers require multi-layer PCBs (sometimes with 12 or more layers) to accommodate incredibly dense networks of processors, memory, and high-speed data lines.
Think of it this way:
Single-Sided: A simple country road.
Double-Sided: A efficient two-lane highway with overpasses.
Multi-Layer: A massive, multi-level stacked interchange.
The double-sided PCB is a fundamental and revolutionary step in electronics design. By simply adding a second layer and connecting it with vias, it unlocks a world of possibilities for making circuits more powerful, compact, and efficient.
For anyone looking to move beyond basic prototypes into more professional and functional electronic products, understanding and utilizing double-sided PCBs is an essential skill.
