XRX-10285
DGXRX

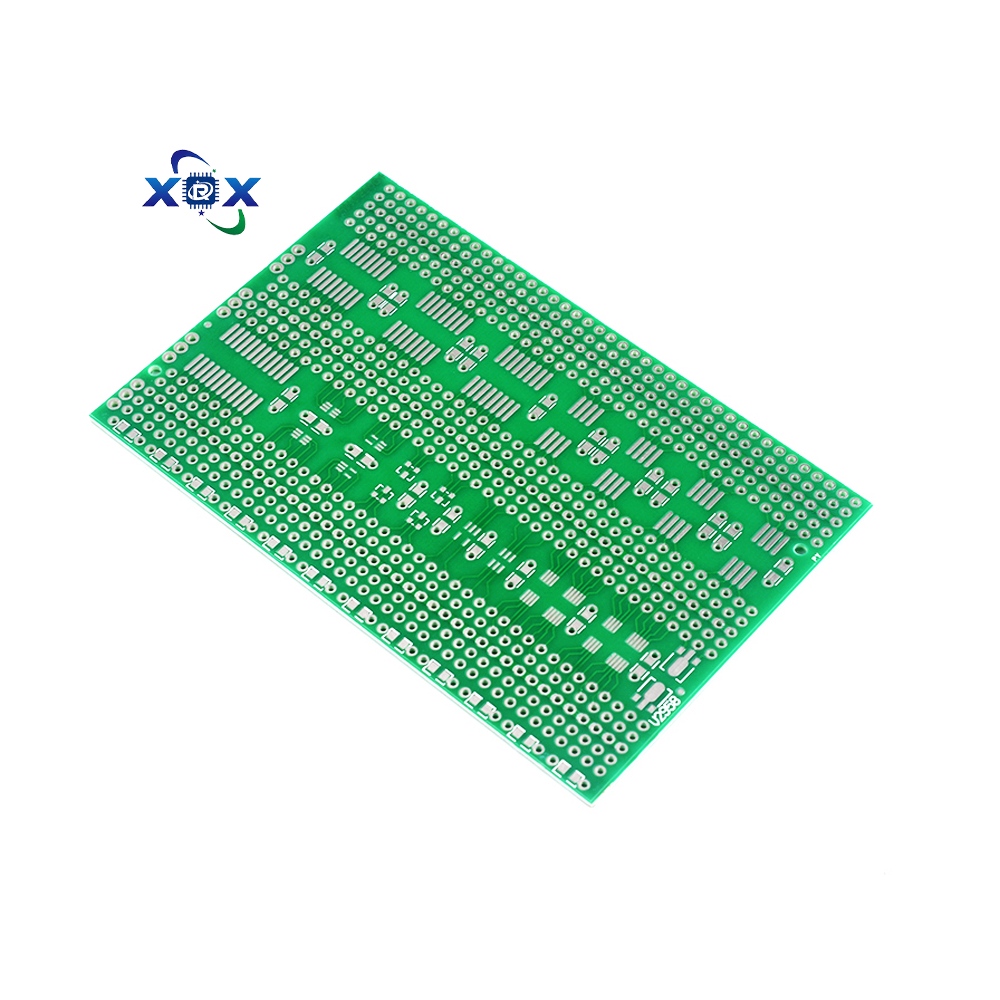

Our Factory customized 05-1.6mm single-sided circuit board with electroplated metal surface technology is a specialized solution designed for applications that require a balance of precision, durability, and specific surface properties. These single-sided PCBs are available in a thickness range of 0.5mm to 1.6mm, making them suitable for a variety of compact and lightweight electronic devices.
The electroplated metal surface technology provides a smooth, uniform, and highly conductive surface finish, which enhances the solderability and corrosion resistance of the PCB. We offer customization in terms of board size, copper thickness, and the type of electroplated metal (such as nickel, gold, or tin), allowing us to meet the unique requirements of our customers' applications.
Precise Thickness Control: With a thickness range of 0.5mm to 1.6mm, our single-sided circuit boards are ideal for applications where space is limited, such as in portable electronics, wearable devices, and small-scale consumer products. The precise thickness control ensures that the boards fit perfectly into the device's mechanical design.
Electroplated Metal Surface Finish: The electroplated metal surface technology provides several advantages, including improved solderability, which ensures reliable component attachment; enhanced corrosion resistance, protecting the board from environmental factors such as moisture and chemicals; and better electrical conductivity, reducing signal loss and contact resistance.
High-Quality Copper Layer: The copper layer on our single-sided PCBs is of high purity, ensuring excellent electrical conductivity and durability. We offer different copper weights (from 1oz to 3oz) to meet the current-carrying requirements of different applications.
Customization Options: In addition to thickness and surface finish, we offer customization in terms of board shape (including cutouts and slots), hole sizes, and marking options (such as silkscreen printing for component identification and labeling).
These factory-customized single-sided circuit boards with electroplated metal surface technology are used in a variety of applications, including:
Wearable Electronics: Smartwatches, fitness trackers, and hearables require compact and lightweight PCBs with reliable surface finishes to ensure proper component soldering and long-term performance in close contact with the body.
Portable Devices: Mobile power banks, wireless earbuds, and handheld gaming devices use our PCBs for their space-efficient design and durable surface finish, which can withstand the daily wear and tear of portable use.
LED Lighting: LED drivers and control circuits in LED lights, especially in compact fixtures such as downlights and strip lights, benefit from the precise thickness and reliable surface finish of our PCBs.
IoT Devices: Internet of Things (IoT) sensors and modules, which are often small and require low power consumption, use our single-sided PCBs with electroplated surfaces for their efficient signal transmission and long-lasting performance.
Q: What types of electroplated metal surfaces do you offer?
A: We offer electroplated nickel, gold, tin, and nickel-gold alloy surfaces, depending on your application's requirements for solderability, corrosion resistance, and cost.
Q: Can you produce boards with non-standard shapes?
A: Yes, we can customize the board shape according to your design specifications, including circular, rectangular, or any other complex shape with cutouts and slots.
Q: What is the minimum thickness you can produce?
A: The minimum thickness we can produce for these single-sided circuit boards is 0.5mm, while the maximum is 1.6mm, as specified in the product name.
Q: How does the electroplated surface affect the soldering process?
A: The electroplated surface provides a smooth and uniform finish that enhances the wetting of solder, making the soldering process easier and more reliable. It also reduces the risk of solder bridges and other soldering defects.
