XRX-100231
DGXRX
Parameter | Value |
Test | Fly needle test |
Plate | FR-4 |
Minimum line spacing | 0.35mm |
Thickness of te board | 1mm |
Product type | Printed circuit board |

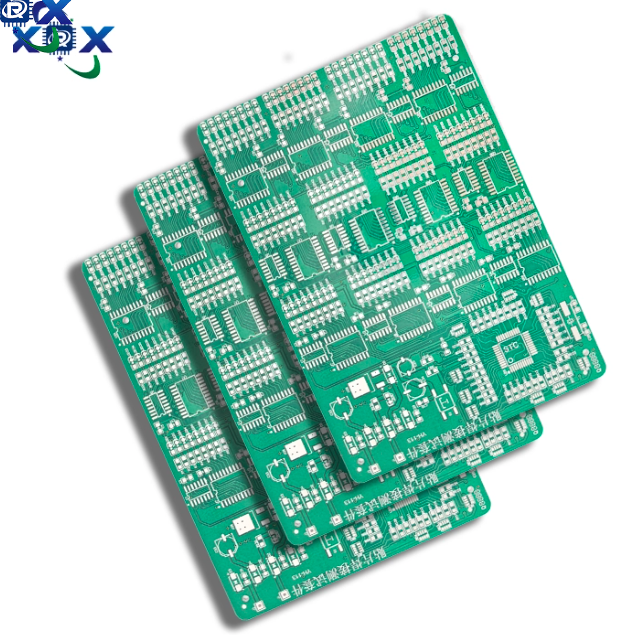

The printed circuit board uses FR-4 material.
It has a thickness of 1mm.
Minimum line spacing is 0.35mm.
Each board undergoes a fly needle test
A 10cm² board can hold dozens of chips, allowing complex designs in limited space.
Added power and ground layers reduce signal loss by 50%, which helps avoid interference.
Multilayer designs reduce crosstalk and noise, supporting stable function in 5G RF modules.
Multilayer boards weigh 30–50% less than stacked single-layer boards, which suits aerospace devices.
Smart bands use 6–8 layers to combine sensors and processors, reducing volume by about 60%.
An 18-layer board using RO4350B material can handle 7GHz radar signals with low signal loss.
Circuit boards are also widely used in household appliances, such as televisions, refrigerators, washing machines, etc., to achieve control and operation of household appliances.
Circuit boards are widely used in computer hardware, including motherboards, graphics cards, sound cards, etc., to achieve connections and communication between vari
Circuit boards play a core role in communication equipment, such as mobile phones, telephones, routers, etc., used to achieve functions such as signal processing and data transmission.
Circuit boards are also used in medical equipment, such as electrocardiographs, blood pressure monitors, oximeters, etc., to achieve signal acquisition, processing, and display.
We believe that through the professional services and excellent quality of Dongguan Xinrongxing Technology Co., Ltd., we will definitely bring more efficient guarantees to your business and contribute to your success. Welcome to contact us anytime, let's create a better future together!
Our technical team has rich experience and can provide you with support in circuit board design, manufacturing, and maintenance.
We provide comprehensive after-sales service to ensure that customers have no worries during use.
We have a comprehensive logistics delivery system to ensure that products can be delivered to customers in a timely manner.
A：Our printed circuit boards are made with high-quality FR-4 material, known for its excellent insulation and mechanical strength. For specialized high-frequency applications, RO4350B material is used to ensure low signal loss and thermal stability.
A：The minimum line spacing is 0.35mm, and the standard thickness of each board is 1mm. These specifications support compact, reliable, and high-performance designs.
A：Our multilayer PCBs are used in a wide range of applications, including:
Household appliances (e.g., TVs, refrigerators)
Computer hardware (e.g., motherboards, graphics cards)
Communication equipment (e.g., mobile phones, routers)
Medical devices (e.g., ECG monitors, oximeters)
A：We offer comprehensive after-sales support, including troubleshooting, product maintenance, and technical assistance. Our dedicated support team is available to address any concerns and ensure the continued performance of your products.
A：In addition to being popular within China, our products are exported to countries such as the USA, India, Germany, and Vietnam.
