FR4 PCB Vs CEM-1 PCB Vs Aluminum PCB: Complete Comparison

Views: 0     Author: Site Editor     Publish Time: 2026-07-20      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Choosing the right PCB material can make or break your electronic design. Did you know material affects performance and durability? PCBs are vital in almost every electronic device. Selecting between FR4, CEM-1, and Aluminum PCBs impacts heat management, strength, and cost. In this post, you’ll learn their differences, uses, and how to pick the best one for your project.

Table of Contents

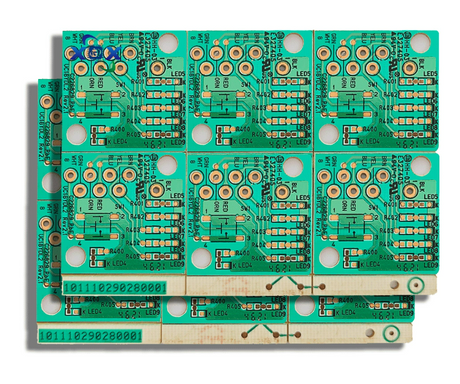

Understanding FR4 PCB: Composition, Properties, and Applications

What is FR4 PCB material?

FR4 stands for Flame Retardant 4. It's a composite material made of woven fiberglass cloth combined with an epoxy resin binder. This blend creates a strong, durable, and flame-resistant substrate widely used in printed circuit boards (PCBs). The fiberglass provides mechanical strength, while the epoxy resin offers electrical insulation and flame resistance.

FR4 is the most common PCB material globally. Its uniform structure supports single-layer and multilayer boards. The epoxy resin is flame-retardant, meeting safety standards like UL94 V-0. Its versatility and reliability make it the default choice for many electronics manufacturers.

Mechanical and thermal properties of FR4

FR4 is known for excellent mechanical stability. The fiberglass reinforcement gives it high tensile and flexural strength. This makes the boards resistant to bending, twisting, and mechanical stress during assembly and use.

Thermally, FR4 performs well up to temperatures around 130°C to 140°C, which is its glass transition temperature (Tg). Above this, the material softens, which can cause deformation or delamination. Its coefficient of thermal expansion (CTE) is moderate, matching well with copper layers to reduce stress on plated through-holes.

Key mechanical and thermal properties:

  • Tensile strength: High, supports robust PCB structure

  • Flexural strength: Good resistance to bending

  • Tg: Typically 130°C to 140°C (higher Tg variants exist)

  • CTE: About 50-70 ppm/°C in-plane

  • Flame retardant: UL94 V-0 rating

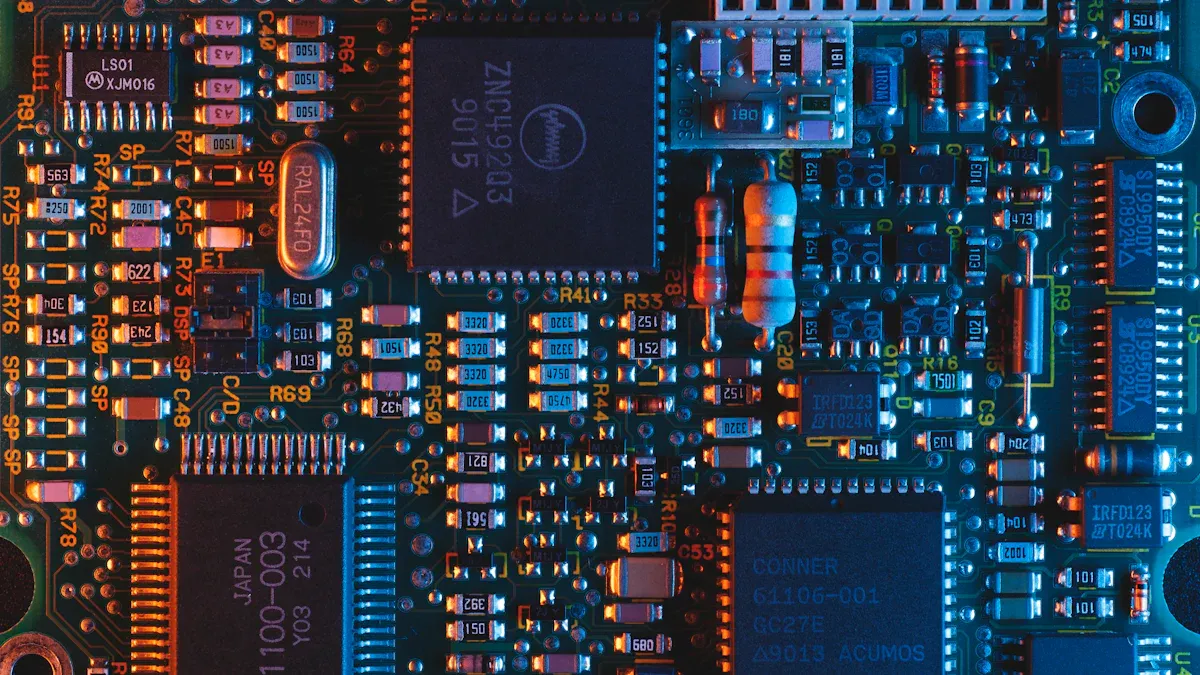

Electrical characteristics of FR4 PCBs

FR4 offers good electrical insulation, making it ideal for signal integrity and preventing shorts. It has a dielectric constant (Dk) around 4.5, suitable for most digital and analog circuits. The dissipation factor (Df), indicating signal loss, is moderate, generally acceptable for frequencies up to a few GHz.

Its volume and surface resistivity are high, ensuring minimal leakage currents. However, FR4 is not ideal for very high-frequency RF applications where specialized materials like Rogers or PTFE are preferred.

Common applications of FR4 in consumer electronics and industrial use

FR4 is widely used in:

  • Consumer electronics: smartphones, TVs, computers

  • Industrial controls and automation equipment

  • Automotive electronics, including dashboards and sensors

  • Telecommunications devices and networking hardware

  • Household appliances and toys

Its balance of cost, reliability, and manufacturability makes it suitable for a broad range of products.


Advantages and limitations of FR4 in PCB design

Advantages:

  • Cost-effective and widely available

  • Good mechanical strength and durability

  • Flame-retardant and safe for most environments

  • Supports multilayer PCB designs

  • Compatible with standard manufacturing processes

Limitations:

  • Moderate thermal conductivity limits heat dissipation

  • Not suitable for high-frequency or high-speed RF circuits

  • Tg limits use in high-temperature environments

  • Moisture absorption can affect reliability in harsh conditions

Despite limitations, FR4 remains the industry standard for many applications due to its overall balanced properties.

Tip: When designing with FR4, consider using high-Tg variants for applications with elevated operating temperatures to improve thermal stability and reliability.

Exploring CEM-1 PCB: Structure, Performance, and Use Cases

Definition and composition of CEM-1 PCB material

CEM-1 stands for Composite Epoxy Material 1. It is a PCB substrate made from a paper core sandwiched between woven glass fabric layers, all bonded with epoxy resin. Unlike FR4, which uses woven fiberglass throughout, CEM-1 combines paper and fiberglass, making it lighter and less expensive. The epoxy resin provides flame retardancy and electrical insulation, while the paper core offers cost savings and easier mechanical processing.

This structure makes CEM-1 primarily suitable for single-sided PCBs, where simplicity and cost are key. The paper core limits multilayer capabilities due to reduced mechanical strength and moisture resistance compared to FR4.

Mechanical strength and flexibility comparison with FR4

CEM-1 has moderate mechanical strength. The paper core reduces rigidity and tensile strength compared to the all-fiberglass FR4. It is less resistant to bending and mechanical stress, making it more fragile during handling and assembly.

However, CEM-1 offers higher flexural strength than pure paper-based laminates, thanks to its glass fabric surfaces. It is more flexible than FR4 but also more prone to warping or bowing, especially under thermal cycling or moisture exposure.

In short:

  • CEM-1: Moderate strength, more flexible, prone to warpage

  • FR4: High strength, rigid, better dimensional stability

Thermal and electrical performance of CEM-1

Thermally, CEM-1 has a lower glass transition temperature (Tg) around 110°C to 130°C, less than typical FR4 (130°C to 140°C). This limits its use in high-temperature environments or processes like lead-free soldering.

Its thermal conductivity is similar to FR4 but less effective for heat dissipation in power applications. The coefficient of thermal expansion (CTE) mismatch with copper layers is higher, which can stress solder joints.

Electrically, CEM-1 has a dielectric constant around 4.5, comparable to FR4, and provides adequate insulation for low-frequency circuits. However, it has a higher dissipation factor, meaning more signal loss at higher frequencies. This makes it less suitable for high-speed or RF circuits.

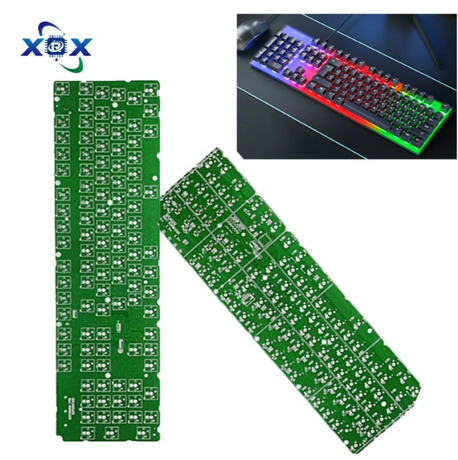

Typical applications suited for CEM-1 PCBs

CEM-1 is best for simple, cost-sensitive applications that require single-sided PCBs. Common uses include:

  • Consumer electronics like remote controls, toys, and basic appliances

  • LED lighting circuits where moderate heat dissipation suffices

  • Power supplies and adapters with low complexity

  • Simple control panels and relay boards in industrial environments

Its affordability and ease of punching make it ideal for high-volume production of basic boards.

blogs_0003_Household appliances.jpg

Pros and cons of using CEM-1 in PCB manufacturing

Pros:

  • Cost-effective compared to FR4

  • Easier mechanical punching, reducing tooling wear

  • Lightweight and simple to process

  • Good electrical insulation for low-frequency applications

Cons:

  • Limited to single-layer designs; not suitable for multilayer boards

  • Lower mechanical strength and dimensional stability

  • Lower thermal resistance and Tg restricts high-temp use

  • Higher moisture absorption can affect reliability

  • Less suitable for high-frequency or complex circuits

Tip: When cost is a priority and your design is single-sided with low thermal demands, CEM-1 offers a practical, budget-friendly PCB solution.

Aluminum PCB: Features, Thermal Management, and Industry Applications

What defines an Aluminum PCB and its core structure

An Aluminum PCB, also called a Metal Core PCB (MCPCB), uses a metal base instead of traditional fiberglass. The core is usually aluminum but can be copper or other alloys. This metal core is bonded to a dielectric layer, which insulates electrically while conducting heat. On top lies the copper circuitry layer.

The structure typically includes three layers:

  • Metal Base Layer: Aluminum sheet provides mechanical support and excellent heat conduction.

  • Thermally Conductive Dielectric Layer: Separates metal from copper, allowing heat to flow but preventing electrical shorts.

  • Copper Circuit Layer: Standard copper foil for signal paths and components.

This design helps Aluminum PCBs dissipate heat effectively from high-power components, unlike FR4 or CEM-1 boards that use insulating substrates with poor thermal conductivity.

Thermal conductivity and heat dissipation advantages

Aluminum PCBs excel in thermal management. Aluminum’s thermal conductivity ranges between 1.0 and 3.0 W/m·K, much higher than FR4’s 0.2 W/m·K. This means heat generated by components transfers quickly through the metal core and spreads over a larger area.

Benefits include:

  • Reduced hot spots on the board

  • Lower junction temperatures for components

  • Enhanced reliability and longer lifespan for electronics

  • Ability to handle higher power densities

The thermally conductive dielectric layer ensures electrical isolation while maintaining heat flow. This combination is ideal for LED lighting, power converters, and motor drives, where heat dissipation is critical.

Mechanical robustness and durability aspects

Aluminum PCBs offer excellent mechanical strength. The metal core resists bending, warping, and vibration better than fiberglass substrates. This durability protects sensitive components and solder joints during handling and operation.

Additional mechanical advantages:

  • High dimensional stability under thermal cycling

  • Resistance to moisture and environmental stress

  • Good impact resistance for rugged applications

These properties make Aluminum PCBs suitable for harsh environments and industrial uses.

Key industries and applications benefiting from Aluminum PCBs

Industries that rely on Aluminum PCBs include:

  • LED Lighting: Efficient heat dissipation supports high-brightness LEDs and long service life.

  • Power Electronics: Power supplies, inverters, and motor controllers benefit from thermal and mechanical performance.

  • Automotive Electronics: Engine control units and sensors operate reliably under high temperature and vibration.

  • Consumer Electronics: High-power devices like amplifiers and chargers use Aluminum PCBs to manage heat.

  • Industrial Equipment: Heavy machinery and robotics require durable PCBs with good thermal handling.

Limitations and considerations when using Aluminum PCBs

Despite advantages, Aluminum PCBs have some constraints:

  • Cost: More expensive than FR4 or CEM-1 due to metal base and specialized materials.

  • Weight: Heavier than fiberglass boards, which may be a factor in portable devices.

  • Design Complexity: Requires careful dielectric thickness and thermal layer design to balance insulation and heat flow.

  • Signal Integrity: Not ideal for high-frequency RF circuits, as metal cores can cause signal interference.

  • Manufacturing: Processes like drilling and routing need special equipment to handle metal layers.

Understanding these factors helps engineers decide when Aluminum PCBs are the best fit.

Tip: When designing Aluminum PCBs, optimize the thickness of the thermally conductive dielectric to maximize heat transfer while ensuring electrical isolation and mechanical stability.


Comparative Analysis: FR4 PCB Vs CEM-1 PCB Vs Aluminum PCB

Material composition and structural differences

FR4 is a composite of woven fiberglass cloth fully impregnated with epoxy resin, creating a uniform, flame-retardant substrate. It offers excellent mechanical strength and supports multilayer PCB designs. CEM-1 combines a paper core with woven glass fabric surfaces bonded by epoxy resin. This hybrid structure is lighter and less costly but mainly suited for single-layer PCBs due to mechanical and moisture limitations. Aluminum PCBs replace the traditional fiberglass core with a metal base, usually aluminum, topped by a thermally conductive dielectric and copper circuitry. This metal core structure excels at heat dissipation but adds weight and complexity.

Material

Core Structure

Layers Supported

Flame Retardancy

Weight

FR4

Woven fiberglass + epoxy resin

Single & multilayer

Yes (UL94 V-0)

Light

CEM-1

Paper core + glass fabric + epoxy

Mainly single-layer

Yes

Very light

Aluminum

Metal base + dielectric + copper

Single & multilayer (usually single-layer)

Yes

Heavier

Mechanical properties comparison: strength, flexibility, and durability

FR4 provides high tensile and flexural strength, making it rigid and resistant to bending or warping. It maintains dimensional stability under thermal cycling and mechanical stress. CEM-1 offers moderate strength and is more flexible but prone to warping, especially in humid or thermal stress conditions. Aluminum PCBs are mechanically robust due to their metal core, resisting bending, impacts, and vibration better than FR4 or CEM-1. However, their rigidity limits flexibility.

Property

FR4

CEM-1

Aluminum PCB

Tensile Strength

High

Moderate

High

Flexibility

Low (rigid)

Moderate (flexible)

Low (rigid)

Durability

Good

Moderate

Excellent

Warpage Tendency

Low

Higher

Very low

Thermal performance and heat management capabilities

Aluminum PCBs outperform FR4 and CEM-1 in thermal conductivity, thanks to the metal base. Aluminum’s thermal conductivity ranges from 1.0 to 3.0 W/m·K, while FR4 and CEM-1 hover around 0.2 W/m·K. This allows Aluminum PCBs to dissipate heat efficiently, reducing hot spots and improving component lifespan. FR4 offers moderate thermal stability with a Tg around 130–140°C, suitable for most consumer and industrial electronics. CEM-1 has a lower Tg (110–130°C), limiting its use in higher temperature environments. Both FR4 and CEM-1 have similar but limited heat dissipation capabilities compared to Aluminum.

Material

Thermal Conductivity (W/m·K)

Tg (°C)

Heat Dissipation Efficiency

FR4

~0.2

130–140

Moderate

CEM-1

~0.15–0.2

110–130

Low to moderate

Aluminum

1.0–3.0

150–180

High

Electrical properties and signal integrity considerations

FR4 and CEM-1 share similar dielectric constants (~4.5), providing good electrical insulation for most digital and analog circuits. FR4 has a lower dissipation factor than CEM-1, meaning less signal loss and better performance at higher frequencies. CEM-1’s higher dissipation factor limits its use in high-speed or RF circuits. Aluminum PCBs, due to their metal core, can cause signal interference and are generally not used for high-frequency or sensitive signal layers. They are better suited for power electronics where heat management is critical.

Property

FR4

CEM-1

Aluminum PCB

Dielectric Constant

~4.5

~4.5

Not applicable (metal core)

Dissipation Factor

Low

Higher

Potential interference

Signal Integrity

Good

Moderate

Poor for RF/high speed

Cost implications and manufacturing complexity

CEM-1 is the most cost-effective option, favored in high-volume, low-complexity single-layer boards. Its paper core allows easier mechanical punching, reducing tooling costs. FR4 is moderately priced, balancing cost and performance, and supports complex multilayer designs. Aluminum PCBs are the most expensive due to metal core materials and specialized manufacturing processes like controlled dielectric thickness and metal drilling. Additionally, Aluminum PCBs require more

Selecting the Right PCB Material: Factors to Consider

Choosing the best PCB material depends on many factors. Each project has unique needs that influence which material fits best. Here are key points to keep in mind:

Application Requirements: Power, Frequency, and Environment

Think about the device’s power level and signal frequency. High-power circuits generate more heat, needing materials with better thermal conductivity like Aluminum PCBs. High-frequency signals require materials with low dielectric loss and stable electrical properties, favoring FR4 or specialized substrates. Also, consider the environment. Devices exposed to moisture, vibration, or extreme temperatures need durable, reliable materials.

Thermal Management Needs and Operating Temperature Ranges

Heat dissipation is critical. FR4 handles temperatures roughly up to 130–140°C before softening. CEM-1 has a lower temperature tolerance, around 110–130°C, limiting use in hotter conditions. Aluminum PCBs excel in heat transfer, suitable for power electronics or LED lighting. Choose materials that keep components cool and prevent thermal damage.

Mechanical Stresses and Durability Demands

Mechanical strength matters if the PCB faces bending, vibration, or impact. FR4 offers strong rigidity and dimensional stability, ideal for multilayer boards. CEM-1 is less strong and more prone to warping, better for simple, single-layer boards. Aluminum PCBs provide excellent mechanical robustness but are heavier and less flexible.

Cost vs Performance Trade-offs

Budget plays a big role. CEM-1 is the most cost-effective, great for low-cost, single-layer boards. FR4 balances cost and performance well, supporting complex multilayer designs. Aluminum PCBs cost more due to metal cores and special manufacturing but offer superior thermal and mechanical properties. Weigh upfront costs against long-term reliability.

Compliance with IPC Standards and Manufacturing Capabilities

Ensure your chosen material meets IPC standards like IPC-4101 for rigid laminates. Standards guarantee quality and compatibility with manufacturing processes. Also, check if your manufacturer can handle specific materials, especially Aluminum PCBs, which require special equipment for drilling and routing.

Design Considerations for Multi-layer and Flexible PCBs

If your design calls for multilayer boards, FR4 is usually preferred due to its uniform structure and strength. CEM-1 is limited to single-layer use. For flexible or rigid-flex PCBs, materials like polyimide or specialized flex laminates are better suited. Aluminum PCBs typically serve single or two-layer designs focused on thermal performance.

Tip: Match your PCB material to your product’s power, thermal, mechanical, and budget needs early in the design phase to avoid costly redesigns or reliability issues later.

Best Practices and Tips for Working with FR4, CEM-1, and Aluminum PCBs

Design guidelines for optimizing PCB reliability

When designing PCBs using FR4, CEM-1, or Aluminum substrates, focus on material-specific strengths and limitations:

  • FR4: Use high-Tg variants for higher temperature environments. Keep trace widths and spacing optimized to avoid stress on plated-through holes caused by thermal expansion. Design multilayer boards with balanced copper distribution to reduce warpage.

  • CEM-1: Limit designs to single-layer boards. Use wider traces to accommodate potential expansion and reduce mechanical stress. Avoid tight component clustering to minimize warpage risk. Incorporate copper pours to improve heat spreading in LED or power applications.

  • Aluminum PCB: Optimize the thickness of the thermally conductive dielectric layer to balance heat transfer and electrical isolation. Ensure proper clearance between metal core and copper to prevent shorts. Design for single or double-layer circuits, as multilayer aluminum PCBs are complex.

Manufacturing considerations for different PCB materials

  • FR4: Compatible with standard PCB fabrication processes including drilling, plating, and soldering. Use controlled lamination cycles to prevent delamination. High-Tg FR4 requires higher curing temperatures.

  • CEM-1: Easier for mechanical punching due to paper core, reducing tooling wear. Avoid multilayer lamination as the paper core is not suitable. Watch for moisture absorption during storage and fabrication.

  • Aluminum PCB: Requires specialized drilling and routing tools to handle metal base. Precise control of dielectric layer thickness is critical. Ensure manufacturers have experience with metal core PCBs to avoid defects.

Handling and assembly tips to avoid material-specific issues

  • FR4: Prevent moisture absorption by proper storage and baking before assembly. Avoid excessive mechanical stress during handling to prevent cracks.

  • CEM-1: Handle gently to avoid warping or cracking. Bake boards before soldering to reduce moisture-related failures. Minimize exposure to humidity.

  • Aluminum PCB: Use non-metallic tools when handling to avoid scratching metal base. Ensure proper grounding to prevent electrical shorts. Avoid bending boards as metal core is rigid.

Testing and quality assurance approaches

  • Perform thermal cycling tests to assess material stability under temperature changes.

  • Use X-ray inspection for multilayer FR4 boards to detect delamination or voids.

  • Conduct moisture resistance tests, especially for CEM-1, to ensure reliability.

  • For Aluminum PCBs, verify thermal conductivity and dielectric layer integrity through specialized tests.

  • Electrical testing should include impedance and continuity checks tailored to material properties.

Common pitfalls and how to avoid them

  • FR4: Overlooking Tg limits leads to board deformation. Use high-Tg variants for high-temp applications.

  • CEM-1: Attempting multilayer designs causes delamination. Stick to single-layer use.

  • Aluminum PCB: Improper dielectric thickness causes shorts or poor heat dissipation. Collaborate closely with experienced manufacturers.

  • Moisture exposure is a universal risk; always store boards in dry conditions and bake if needed.

  • Ignoring mechanical stresses during assembly can cause cracks or warping. Use proper fixtures and handling tools.

Tip: Always collaborate early with your PCB manufacturer to tailor design and process parameters for FR4, CEM-1, or Aluminum boards, ensuring optimized reliability and manufacturability.

Conclusion

Choosing between FR4, CEM-1, and Aluminum PCBs depends on your project's power, thermal, and mechanical needs. FR4 suits multilayer, high-strength applications, while CEM-1 fits cost-sensitive, single-layer designs. Aluminum PCBs excel in heat dissipation for high-power uses but come with higher costs and weight. Engineers should match materials to device requirements and manufacturing capabilities. Future trends focus on improved thermal properties and flexible designs. Xinrongxing offers reliable PCB solutions that balance performance and cost, helping you achieve optimal results.

FAQ

Q: What are the main differences between FR4, CEM-1, and Aluminum PCBs?

A: FR4 uses woven fiberglass and epoxy resin, supporting multilayer boards with good mechanical strength. CEM-1 has a paper core, suitable for single-layer, cost-effective PCBs. Aluminum PCBs use a metal core for superior heat dissipation and mechanical durability but are heavier and pricier.

Q: Why choose an Aluminum PCB over FR4 or CEM-1?

A: Aluminum PCBs offer excellent thermal conductivity and mechanical robustness, ideal for high-power or heat-sensitive applications like LED lighting and power electronics, unlike FR4 and CEM-1 which have limited heat dissipation.

Q: How does the cost of CEM-1 PCB compare to FR4 and Aluminum PCBs?

A: CEM-1 PCBs are the most cost-effective, suited for simple, single-layer designs. FR4 offers a balance of performance and price, while Aluminum PCBs are more expensive due to metal cores and specialized manufacturing.

Q: What are common applications for FR4 PCBs?

A: FR4 PCBs are widely used in consumer electronics, automotive, telecommunications, and industrial controls due to their durability, flame retardancy, and multilayer support.

Q: How can I avoid common issues when working with CEM-1 PCBs?

A: Limit designs to single-layer boards, handle carefully to prevent warping, control moisture exposure, and bake before soldering to enhance reliability.

Table of Content list

Sign Up for Our Newsletter

About Us

We believe that through the professional services and excellent quality of Dongguan Xinrongxing Technology Co., Ltd., we will definitely bring more efficient guarantees to your business and contribute to your success. Welcome to contact us anytime, let's create a better future together!


Quick Links

Product Category

Contact Us

Add: 103, Unit 1, Building 135, Huijing Kailun Bay Garden, 150 Shatian Avenue, Shatian Town, Dongguan City, Guangdong Province
Tel: +86-13724222511
Copyright © 2025 Dongguan Xinrongxing Technology Co., Ltd. All Rights Reserved. Sitemap
