Have you ever wondered what powers your smart home appliances? Printed Circuit Boards (PCBs) are the hidden brains behind these devices. They have evolved from simple circuits to complex systems enabling energy-efficient and connected homes. In this post, you’ll learn how PCBs revolutionize modern appliances and their critical role in smart technology.
Table of Contents

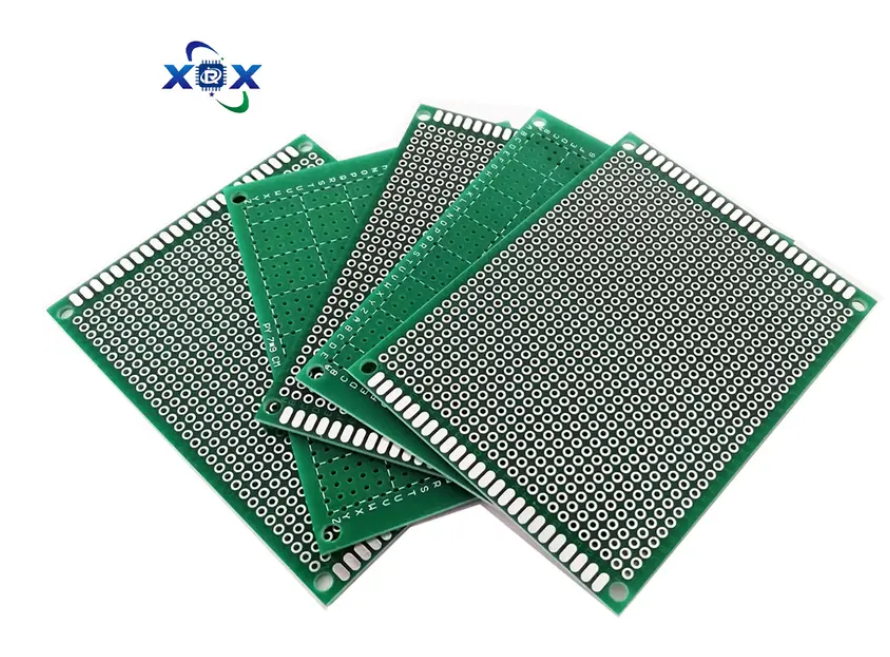

A Printed Circuit Board (PCB) is a flat board made of insulating material, usually fiberglass or epoxy resin, with thin copper pathways etched on the surface. These copper traces connect electronic components, allowing electric signals to flow and enabling the device to function. The board acts as a platform where components like resistors, capacitors, microcontrollers, and sensors are mounted and interconnected.
The basic structure of a PCB includes:
Substrate: The insulating base material providing mechanical support.
Copper Layer: Thin copper foil etched into circuits.
Solder Mask: A protective layer that covers copper traces to prevent short circuits.
Silkscreen: Printed labels to identify component positions.
In home appliances, PCBs serve as the "brain" by controlling and coordinating all electronic operations. They read inputs from sensors (like temperature or water level sensors), process this data through embedded microcontrollers or processors, and then trigger outputs such as motors, valves, or displays.
For example, in a washing machine, the PCB controls the motor speed, water inlet valves, and wash cycles based on user settings and sensor feedback. Without the PCB, these appliances could not perform automated or smart functions, making them less efficient and user-friendly.
Home appliances use several PCB types tailored to their specific needs:
Single-layer PCBs: Consist of one copper layer; used in simple appliances like toasters or basic fans.
Multilayer PCBs: Have multiple copper layers separated by insulating layers; used in complex appliances like smart refrigerators or air conditioners to handle more circuits in a compact space.
Rigid-flex PCBs: Combine rigid and flexible sections; ideal for appliances requiring compactness and flexibility, such as robotic vacuum cleaners or foldable kitchen devices.
Home appliance PCBs integrate various components to perform their functions:
Controllers/Microcontrollers: Act as the central processing unit, executing programmed instructions.
Sensors: Detect environmental conditions such as temperature, humidity, or water level.
Communication Modules: Enable connectivity features like Wi-Fi or Bluetooth for remote control and smart home integration.
Power Management Circuits: Regulate voltage and current to ensure stable operation.
User Interface Components: Include buttons, displays, and touch sensors for user interaction.
These components work together on the PCB to deliver efficient, safe, and intelligent appliance operation.
Tip: When designing PCBs for home appliances, prioritize compact layouts and robust components to ensure durability and reliability in everyday use.
Printed Circuit Boards (PCBs) are central to the operation of many home appliances. They manage control, sensing, and communication tasks, enabling devices to work smarter and more efficiently. Let’s explore how PCBs function across different household appliances.
In refrigerators, PCBs regulate temperature by processing signals from temperature sensors. They control the compressor motor using inverter drives that adjust speed for energy efficiency and quieter operation. Modern fridge PCBs also integrate smart features like Wi-Fi connectivity, allowing remote temperature monitoring and diagnostics through smartphone apps.
Washing machines rely on PCBs to manage motor speed and direction, ensuring proper washing and spinning cycles. Water level sensors feed data to the PCB, which controls inlet valves to adjust water volume precisely. The PCB automates wash cycles, timing, and safety checks, improving cleaning performance while saving water and energy.
Air conditioners use PCBs to operate variable frequency drives (VFDs) that modulate compressor and fan speeds for precise temperature control and energy savings. PCBs also host communication modules like Wi-Fi or Bluetooth for smart home integration, enabling remote control and scheduling.
In microwaves and ovens, PCBs control user interfaces such as touchpads or buttons and digital displays. They manage cooking programs and timers while monitoring safety features like door locks and thermal sensors to prevent accidents.
Small appliances like coffee makers, vacuum cleaners, and air purifiers use PCBs to handle sensor inputs (e.g., temperature, humidity) and manage power delivery. These PCBs ensure efficient operation, user interaction, and often include energy-saving modes.
Tip: When designing PCBs for home appliances, focus on integrating robust sensor interfaces and efficient motor control circuits to enhance device reliability and user experience.
Smart home appliances rely heavily on PCBs that include wireless communication modules. Wi-Fi and Bluetooth chips are commonly embedded directly on the PCB or connected via modules. These allow devices like refrigerators, air conditioners, and washing machines to connect to home networks or smartphones. Integration of these modules requires careful PCB layout to minimize electromagnetic interference and ensure stable signal quality. Designers often place antenna traces or connectors on the PCB edge for optimal wireless performance. This connectivity enables features such as remote monitoring, firmware updates, and voice control.
PCBs serve as the foundation for Internet of Things (IoT) capabilities in home appliances. The embedded microcontrollers on the PCB process sensor data and communicate with cloud services through Wi-Fi or Bluetooth. This connectivity allows users to control appliances remotely via apps, set schedules, or receive alerts on device status and maintenance needs. For example, a smart thermostat’s PCB manages temperature sensors and communicates with a smartphone app to adjust settings from anywhere. The PCB also handles security protocols for safe data transmission, protecting user privacy.
Smart home PCBs incorporate interfaces for various sensors such as temperature, humidity, motion, and light sensors. These interfaces convert analog signals into digital data the microcontroller can process. Proper design ensures accurate sensor readings and low power consumption. For instance, a PCB in a smart refrigerator reads temperature sensors to adjust cooling dynamically. Sensor data also triggers automated responses—like turning on a fan or sending notifications. Reliable sensor interfaces on PCBs are crucial for maintaining comfort, safety, and energy efficiency in automated homes.
Smart Refrigerator PCB: Integrates temperature sensors, Wi-Fi module, and compressor control circuits to maintain optimal cooling and allow remote temperature adjustments.
Smart Washing Machine PCB: Includes motor driver circuits, water level sensors, Bluetooth connectivity, and user interface controls for cycle customization via smartphone.
Smart Air Conditioner PCB: Combines variable frequency drive controls, environmental sensors, and Wi-Fi for energy-efficient operation and remote scheduling.
Smart Oven PCB: Manages touch control panels, safety sensors, and connectivity modules for remote preheating and cooking monitoring.
These PCBs not only improve appliance performance but also enhance user convenience and energy savings by enabling intelligent automation and connectivity.
Tip: When designing smart home appliance PCBs, prioritize robust wireless module placement and secure sensor interfaces to ensure reliable connectivity and accurate automation.
Designing PCBs for home appliances involves balancing size, durability, and cost. Appliances often have limited space, so PCBs must be compact. Designers use multilayer boards to fit complex circuits in small areas. Durability is critical because appliances face heat, moisture, and mechanical stress daily. Materials and components must withstand these conditions over years. Cost is another key factor since appliances are mass-produced. Designers select materials and processes that keep expenses low while maintaining quality. For example, using standard FR4 substrates ensures good durability at an affordable price. Also, optimizing the layout reduces material waste and assembly time, cutting costs further.
Two common assembly methods are Surface Mount Technology (SMT) and Through-Hole Technology (THT). SMT mounts components directly on the PCB surface, allowing smaller, lighter, and more densely packed boards. It's ideal for modern appliances needing compact, high-performance electronics like smart refrigerators or air conditioners. SMT supports automated assembly, speeding production and lowering costs.
Through-Hole Assembly inserts component leads through holes in the PCB and solders them on the opposite side. It provides stronger mechanical bonds, making it suitable for parts exposed to stress or heat, like relays or connectors in washing machines. However, THT boards tend to be larger and more expensive to produce.
Most home appliance PCBs use a mix of SMT for small, sensitive parts and THT for robust components, balancing performance and reliability.
Home appliance PCBs must comply with safety and environmental standards. UL certification ensures materials and assembly meet fire resistance and electrical safety requirements. RoHS compliance restricts hazardous substances like lead, mercury, and cadmium, protecting users and the environment.
Manufacturers use flame-retardant materials like FR4 with UL94-V0 rating to reduce fire risks. They also select lead-free solder alloys to meet RoHS rules. Proper insulation and spacing on PCBs prevent short circuits and electrical hazards. These standards guarantee appliances operate safely and last long.
Modern appliances demand smarter, more connected features, pushing PCB designs toward multilayer and compact formats. Multilayer PCBs stack several copper layers separated by insulating material, enabling complex circuits in tight spaces. This reduces board size and weight, crucial for sleek appliances.
Rigid-flex PCBs combine rigid and flexible sections, allowing compact designs that fit curved or moving parts, such as robotic vacuum cleaners. High-density interconnect (HDI) technology uses finer lines and smaller vias to pack more connections per area.
These trends improve appliance performance, energy efficiency, and connectivity while supporting smart home integration.
Tip: Prioritize a balanced PCB design that considers compactness, robust materials, and cost-effective assembly methods to ensure durable and affordable home appliance electronics.

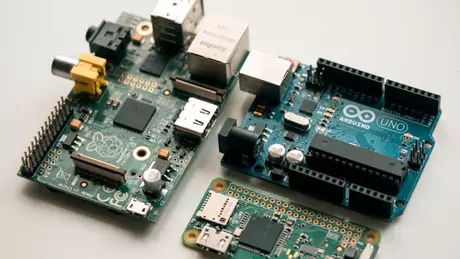

Building your own PCBs for home appliance control offers several advantages. Custom PCBs let you tailor circuits exactly to your needs, whether controlling lights, fans, or other devices. This customization means you can add features commercial boards may lack, such as unique sensor integrations or specialized communication modules. DIY PCBs often cost less for small projects or prototypes, saving money compared to buying off-the-shelf boards. Plus, designing and assembling your own board sharpens your electronics skills, helping you understand how appliances work at a deeper level. It also enables quick iteration and troubleshooting since you control every design aspect.
To design your PCB, open-source Electronic Design Automation (EDA) software is a great choice. KiCad is one popular free tool that supports schematic capture, PCB layout, and 3D visualization. It’s beginner-friendly yet powerful enough for complex projects. With KiCad, you draw your circuit schematic, assign footprints to components, and then arrange those parts on your PCB layout. The software includes design rule checks to catch errors before fabrication. Other open-source options include EasyEDA and Fritzing, but KiCad remains a favorite for its active community and constant updates. Using these tools means no licensing fees, making PCB design accessible to hobbyists and professionals alike.
After designing your board, you can fabricate it at home using several DIY methods:
Etching: This chemical process removes unwanted copper from a blank board using solutions like ferric chloride or safer vinegar mixtures. You print your design as a mask, then submerge the board in the etchant to reveal your circuit traces.
Toner Transfer: Print your PCB layout on glossy paper with a laser printer, then transfer the toner onto the copper board using heat (an iron or laminator). After soaking off the paper, etch the board to remove exposed copper.
Photoresist: Start with a board coated in light-sensitive material. Place a transparency of your design on top and expose to UV light. Develop and etch the board to get precise, fine traces.
CNC Milling: Use a computer-controlled mill to mechanically remove copper. This avoids chemicals but requires a CNC machine and software to generate toolpaths.
Each method has trade-offs in cost, precision, and complexity. Etching and toner transfer are popular for beginners due to low cost, while photoresist and CNC milling offer higher accuracy.
Once your PCB is ready, assemble components using:
Reflow Soldering: Ideal for surface-mount devices (SMDs). Apply solder paste, place components, then heat the board in an oven or with a hot air gun to melt solder and secure parts.
Hand Soldering: Best for through-hole parts like relays or connectors. Use a soldering iron to melt solder on leads inserted through PCB holes.
Reflow soldering is faster and better for small, dense boards. Hand soldering is more accessible and great for beginners or larger components.
Testing is crucial to ensure your PCB works properly. Use a multimeter to check for shorts and continuity. Power the board and verify voltage levels at key points. For microcontroller-based boards, program the firmware using platforms like Arduino IDE. Upload code to control relays, sensors, or communication modules. Test functionality by simulating appliance inputs and outputs, such as toggling a relay to switch a light. Iterative testing helps catch design or assembly errors early.
Always wear gloves and eye protection when handling chemicals or soldering.
Work in a well-ventilated area to avoid fumes.
Start with simple designs to build confidence before tackling complex boards.
Double-check your PCB layout and schematic for errors before fabrication.
Keep your workspace organized to avoid component loss or damage.
Use proper tools like a temperature-controlled soldering iron and quality solder.
Dispose of chemicals responsibly according to local regulations.
Tip: When starting DIY home appliance PCB projects, begin with simple relay control circuits and gradually add sensors and wireless modules as you gain confidence and skills.
Home appliance PCBs must be affordable to fit mass-market products. Manufacturers face pressure to reduce costs without sacrificing quality or reliability. High-volume production demands streamlined processes and efficient use of materials. Designing PCBs that use fewer layers or standard components helps cut costs. However, complex functions like smart connectivity and energy-saving features require more advanced boards, which can increase expenses. Balancing innovation and cost remains a key challenge for PCB makers in this sector.
Appliances operate in diverse environments—heat, humidity, vibration, and electrical noise are common. PCBs must withstand these stresses over many years. Choosing robust materials like high-Tg FR4 and protective coatings improves durability. Proper thermal management prevents overheating, especially in power electronics. Mechanical design considerations, such as shock-resistant mounting and flexible PCB sections, help maintain performance. Testing for environmental conditions during development is essential to ensure reliability in real-world use.
Flexible PCBs are gaining popularity for compact appliances needing bendable or foldable circuits. They save space and allow innovative form factors, like robotic vacuum cleaners or smart kitchen gadgets. Energy efficiency is a growing focus; PCBs now incorporate low-power components and optimized power management circuits to reduce appliance energy consumption. Artificial intelligence (AI) integration on PCBs enables smarter decision-making. For example, AI-powered sensors can adapt appliance operation based on user habits or environmental data, enhancing convenience and savings.
Sustainability drives new PCB designs emphasizing recyclability and reduced hazardous materials. Compliance with RoHS and other environmental standards is mandatory. PCBs also enable smart home technologies that optimize energy use and appliance maintenance, contributing to greener living. For instance, smart meters and IoT-enabled appliances rely on PCBs for real-time data communication and control. As homes become more connected, PCBs will play a central role in integrating renewable energy sources, energy storage, and home automation systems.
Tip: Prioritize designing home appliance PCBs with scalable manufacturing processes and durable materials to meet cost, reliability, and sustainability demands in evolving smart home markets.
PCBs are essential for controlling and enhancing home appliance functions, improving efficiency and user experience. Innovations like flexible designs and AI integration promise smarter, more energy-efficient homes. Embracing advanced PCB solutions supports automation and sustainability in modern living. Xinrongxing offers reliable, high-quality PCB products that deliver durability and performance, helping manufacturers create innovative appliances that meet future demands. Their expertise ensures seamless integration of cutting-edge technology for smarter, connected homes.
A: A PCB (Printed Circuit Board) connects electronic components and acts as the brain of home appliances, controlling functions like sensors, motors, and displays for efficient operation.
A: PCBs integrate Wi-Fi and Bluetooth modules enabling IoT connectivity, remote control, and automation in appliances like refrigerators and air conditioners.
A: Multilayer PCBs compact complex circuits into small spaces, supporting advanced functions and durability in smart appliances.
A: Check for shorts, verify voltage levels, inspect solder joints, and test sensor inputs to diagnose PCB issues.
A: Efficient assembly methods like SMT reduce costs and improve compactness, while robust materials ensure long-term durability.
