Views: 0 Author: Site Editor Publish Time: 2026-06-17 Origin: Site
Balancing material costs and product reliability challenges engineers daily. You must pick the right substrate early in the design phase. Choosing incorrectly often leads to expensive over-engineering or catastrophic field failures. Product teams need a clear strategy for substrate selection.
While the FR4 PCB serves as the industry standard for multi-layer complexity, CEM-1 remains a high-volume staple for cost-sensitive, single-layer applications. Engineers often struggle to pinpoint the exact threshold where transitioning between these materials makes financial and technical sense. You need to understand the structural realities driving these choices.
This guide breaks down the physical, mechanical, and financial thresholds governing substrate selection. We explore the manufacturing impacts and scalability factors driving modern electronics production. You will learn exactly when to specify each material to maximize reliability and minimize manufacturing expenses.
Layer Limitations: CEM-1 is strictly for single-sided boards due to its inability to reliably support Plated Through-Holes (PTH). FR4 supports dense, multi-layer configurations.
Cost Variance: CEM-1 offers significant raw material cost reductions, making it optimal for high-volume, low-complexity manufacturing.
Mechanical Integrity: FR4 provides superior flexural strength and moisture resistance, required for harsh environments and complex assemblies.
Primary Use Cases: Use CEM-1 for basic power supplies and LED lighting; default to FR4 for high-frequency, complex digital, or structurally demanding applications.
Understanding substrate composition helps you predict field performance. The physical makeup of a board dictates its manufacturing limits. We must look closely at how manufacturers construct these two distinct materials.

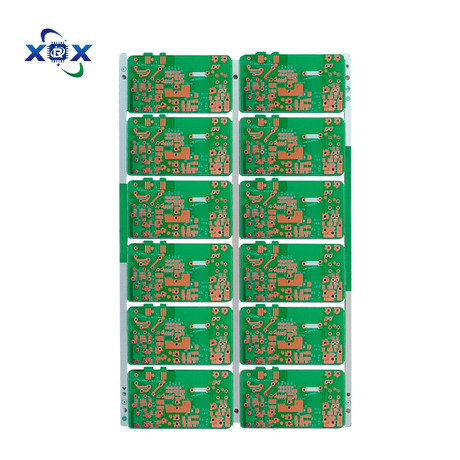

Manufacturers build CEM-1 using a unique composite approach. They sandwich a cellulose paper core between outer layers of woven glass fabric. They then impregnate this entire structure using epoxy resin. This hybrid construction keeps raw material costs exceptionally low.
However, this makeup introduces specific implementation risks. Its paper core readily absorbs moisture. It acts somewhat like a sponge in highly humid environments. Furthermore, CEM-1 lacks structural continuity. The soft paper center cannot reliably hold the copper plating required for Plated Through-Holes (PTH). This structural limitation strictly restricts CEM-1 to single-sided PCB designs.
The FR4 standard relies on a highly uniform construction. Fabricators use multiple continuous layers of woven glass cloth. They infuse these glass layers using a flame-retardant epoxy resin. This all-glass matrix eliminates the weak paper core found in composite materials.
This structural homogeneity guarantees success in complex designs. The continuous glass fibers provide rigid support for drilled hole walls. This allows for highly reliable micro-vias and multi-layer stacking. A standard CEM-1 Vs FR4 PCB evaluation always highlights FR4 as the champion of thermal stability. It maintains its structural integrity consistently under intense thermal stress during assembly and operation.
You must evaluate technical performance across several strict dimensions. Field conditions dictate material requirements. Let us compare how these materials respond to heat, physical stress, and electrical demands.
Thermal management dictates component lifespan. FR4 delivers a higher, highly stable Glass Transition Temperature (Tg). Standard FR4 materials typically offer a Tg of 130°C to 140°C, while high-Tg variants exceed 170°C. This makes them perfectly suitable for prolonged thermal stress.
CEM-1 performs adequately in standard, room-temperature operating environments. However, it degrades much faster under extreme thermal cycling. The thermal expansion rates between its paper core and glass outer layers differ. This mismatch can cause warping or delamination if subjected to repetitive heating and cooling.
Physical durability prevents failure during shipping and installation. FR4 utilizes an all-glass matrix. This yields exceptional flexural and tensile strength. You can mount heavy components on it without fear of the board snapping.
CEM-1 is comparatively brittle. The internal cellulose layer provides very little structural rigidity. It easily falls prone to cracking or warping under heavy component loads. If your product experiences heavy mechanical vibration, you should avoid composite materials entirely.
Signal integrity relies heavily on stable electrical properties. Both substrates offer excellent general dielectric properties for basic current isolation. They prevent electrical arcing effectively.
Yet, FR4 maintains a much more stable Dielectric Constant (Dk) and Dissipation Factor (Df). It holds these values steady across varying high frequencies. It also resists humidity, keeping its electrical properties intact. CEM-1 experiences fluctuating electrical properties when its paper core absorbs ambient moisture.
Material Performance Comparison Matrix
| Performance Metric | CEM-1 Laminate | FR4 Laminate |
|---|---|---|
| Flexural Strength | Low (Brittle core) | High (All-glass matrix) |
| Moisture Resistance | Poor (Hydrophilic paper) | Excellent |
| Glass Transition (Tg) | Standard (~90°C - 120°C) | High (130°C - 170°C+) |
| Layer Support | Single-sided only | Single, Double, Multi-layer |
| Signal Integrity | Adequate for low frequency | Stable at high frequencies |
Substrate selection directly impacts the factory floor. Different materials require different handling techniques. Your choice dictates machining times, tooling wear, and assembly yield rates.
Fabrication speed heavily influences final board costs. Here, we see distinct differences in how factories process these materials.
The primary CEM-1 advantage lies in its softness. Factories can punch this material using specialized dies. They do not need to route or CNC drill the holes. Punching significantly speeds up mass-production cycle times. It also drastically reduces tooling wear, saving money on expensive carbide drill bits.
The FR4 requirement is much stricter. Factories must drill and route it using CNC machines. The dense glass fibers destroy punch dies. While CNC drilling remains slower and harder on drill bits, it yields highly precise hole walls. You absolutely need these precise walls for complex component leads, vias, and dense routing.
Soldering processes apply intense thermal shock to bare boards. You must manage this carefully to avoid blistering.
Thermal Profiling: CEM-1 requires extremely strict temperature profiling during wave soldering. Rapid heating causes moisture trapped in the paper core to turn into steam, leading to delamination.
Soldering Methods: Factories typically restrict CEM-1 to wave soldering for through-hole components. They avoid prolonged reflow ovens.
High Heat Tolerance: FR4 exhibits exceptionally high tolerance to standard reflow and wave soldering profiles.
Yield Protection: Because FR4 withstands aggressive thermal profiles, it minimizes yield loss during complex assembly operations.
Financial feasibility drives most engineering choices. You must balance the immediate raw material savings against volume requirements. Proper cost analysis prevents budget overruns.
Material composition dictates the baseline price. CEM-1 is inherently cheaper per square meter. The manufacturer replaces expensive woven glass fiber with low-cost cellulose paper for the core. This substitution slashes the baseline laminate cost. When you buy raw boards, the price difference immediately stands out.
Scaling production changes the financial equation entirely. You must look at how volume impacts the bottom line.
For massive volumes exceeding 100k units of simple circuits, CEM-1 dominates. Think of smart home switches, LED lighting tubes, and basic adapters. The lower raw material prices combined with rapid die-punching translate to massive Bill of Materials (BOM) savings. At this scale, the tooling cost for the punch die becomes negligible.
For low-to-medium volumes, the dynamic shifts. The upfront setup costs for CEM-1 punching dies can be expensive. Additionally, potential yield issues during soldering can cause scrap. These factors often negate the initial raw material savings. Therefore, FR4 becomes a much safer, more economical default for smaller production runs.
Global availability ensures uninterrupted production lines. Both materials are widely commoditized globally. You can source them easily. However, FR4 availability remains universally guaranteed. Every fabricator, from tier-1 giants to tier-3 regional shops, stocks it heavily. CEM-1 might require specific orders for certain thicknesses, slightly impacting lead times.
Engineers need a reliable framework for making the final call. You should eliminate guesswork by applying rigid shortlisting criteria. We can break this down into clear rules.
You should select composite materials only when specific conditions align perfectly. Avoid using it if you cannot check all these boxes.
The design is strictly single-sided. You require absolutely no Plated Through-Holes (PTH).
The end-product is highly price-sensitive. You plan to produce it in massive volumes to absorb tooling costs.
The operating environment remains climate-controlled. You expect very low ambient moisture and humidity.
The circuit carries simple signals. You do not require high-speed data transmission.
Common examples include basic desk calculators, consumer appliance control panels, rigid LED arrays, and standard desktop power adapters.
You should default to glass-epoxy laminates for anything requiring durability or complexity. It minimizes risk across the board.
The design requires double-sided or dense multi-layer routing.
The board will host heavy components like transformers or large capacitors.
The product will experience mechanical stress, vibration, or drops.
Signal integrity, high frequency, or strict impedance control is required.
Common examples include automotive electronics, industrial programmable logic controllers, IoT network gateways, and high-end computing hardware.
Decision Matrix Chart
| Project Requirement | Recommended Material | Primary Reason |
|---|---|---|
| Single-sided, massive volume | CEM-1 | Lowest material cost, punchable |
| Double-sided or multi-layer | FR4 | Requires PTH structural support |
| Heavy physical components | FR4 | High flexural strength required |
| High moisture environment | FR4 | Paper core absorbs water |
The choice between CEM-1 and FR4 rarely presents a purely technical dilemma. It usually boils down to a strict commercial calculation. FR4 serves as the versatile, risk-averse standard for complex electronics. It forgives minor manufacturing variations and withstands harsh environments. Conversely, CEM-1 acts as a highly targeted tool. It enables aggressive BOM reduction in simple, single-layer designs produced at scale.
To move forward, audit your current single-layer designs. Check if migrating to a composite material proves viable for your specific production volume. Calculate the tooling costs against your projected run rate. Finally, consult directly with your fabrication partner. Ask them to run a prototype batch. This helps validate the material's structural integrity within your specific product enclosure before you commit to mass production.
A: No. While copper can theoretically be bonded to both sides, the paper core cannot reliably hold plating inside drilled holes (PTH). Conductivity between layers will fail.
A: Yes. Like the FR4 PCB, modern CEM-1 materials use lead-free compatible resins and contain flame retardants (the "1" and "4" denote specific flammability ratings equivalent to UL94 V-0).
A: CEM-3 is the middle ground. It uses a glass mat core instead of paper, allowing for double-sided designs and PTH, but it still falls short of FR4's mechanical strength for complex multi-layer boards.
A: Yes. The cellulose (paper) core in CEM-1 is hydrophilic. If the board's edges are unsealed in a highly humid environment, it can absorb moisture, leading to delamination and reduced dielectric strength. FR4 is highly moisture-resistant.
