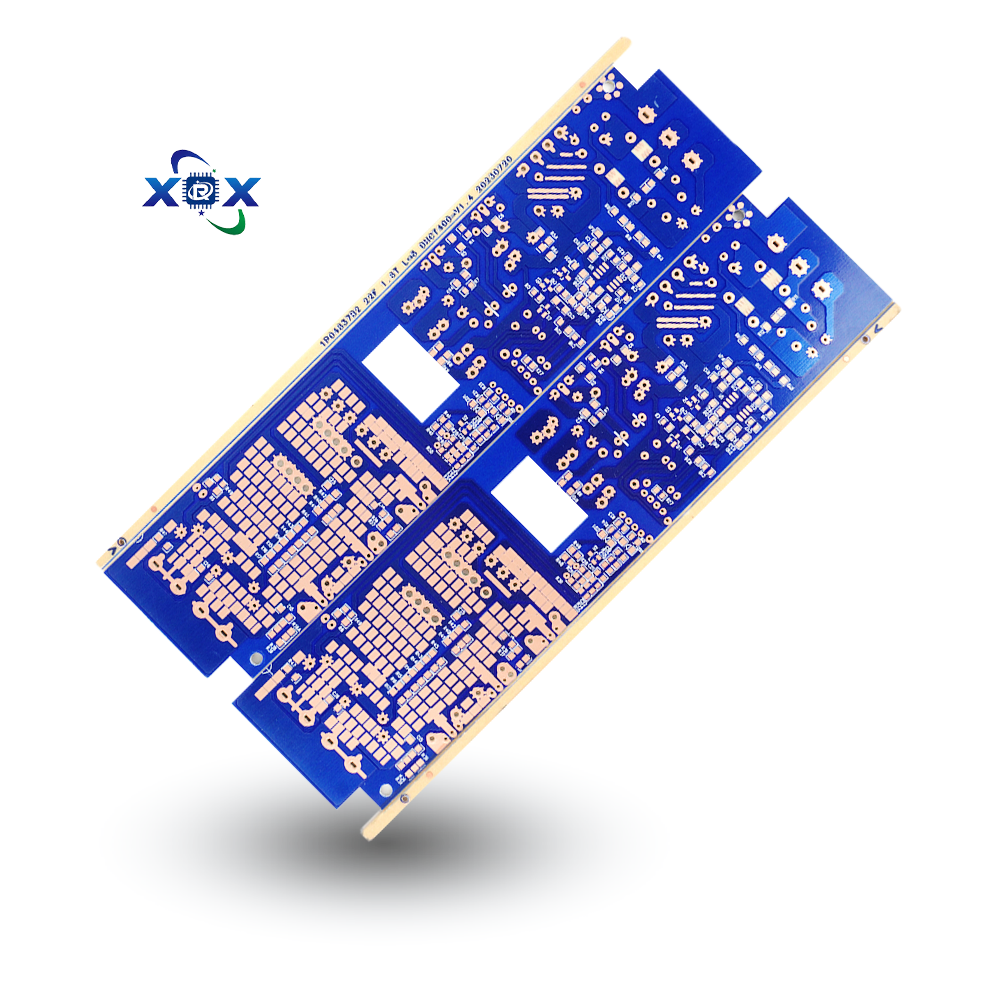

XRX-1025
DGXRX
Typical application areas of FR-4 circuit boards
1. Consumer electronics
Representative products: Smartphones, tablets, home devices (routers, smart speakers), home appliance control boards.
Application advantages:
Ideal choice for cost-sensitive products, such as mobile phone mother using 4~8 layers of FR-4 boards.
Meet the requirements for moisture and heat resistance of home appliance control boards (such as washing machine control boards operatingably in humid environments).
2. Communication equipment
Representative products: 4G/5G base station modules, fiber optic transceivers, routers switches.
Application advantages:
Standard FR-4 for medium and low frequency signal processing (such as power management, logic control).
High-frequency partssuch as antennas) can be mixed with high-frequency materials (such as Rogers) to reduce costs.
3. Automotive electronics
Representative products: ECUengine control unit), in-vehicle information and entertainment system, ADAS sensor module, headlight controller.
Application advantages:
High Tg FR-4 (g≥170℃) can withstand the high-temperature environment of the engine compartment.
Comply with TS16949 certification, meeting automotive-grade requirements (such as vibration, salt spray test).
4. Industrial control
Representative products: PLC (programmable logic controller), motor driver, industrial control board, HMI (human-machine interface).
Application advantages:
Chemical corrosion resistance (such as oil stains, weak acid gases in factory environments.
Support thick copper design (2~3oz), carrying large currents (such as 20A power supply for motor driver boards).
5. equipment
Representative products: Monitor, ultrasound device, portable blood glucose meter, medical imaging system.
Application advantages:
Biological compatibility certification (such as ISO10993), ensuring long-term contact with the human body is safe.
Low moisture absorption (moisture absorption rate <0.1, avoiding performance degradation in humid environments.
