XRX-100230
DGXRX
Parameter | Value |
Product Name | Single-sided Printed Circuit Boards for Automotive Electronics |
Company Name | Dongguan Xinrongxing Technology |
Board Thickness | 1.6mm |
Minimum Line Spacing | 0.35µm |
Material | FR-4 |
Board Type | Printed Circuit Board |
Test Method | Fly Needle Test |

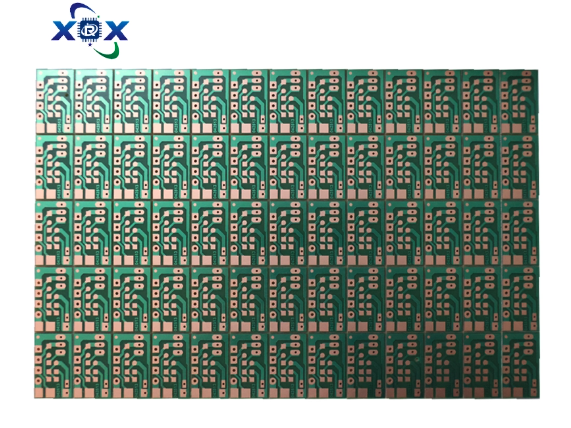

Single-sided PCB for Automotive Use
This is a single-sided printed circuit board.
It is specially developed for automotive electronics.
The board supports stable electrical connections.
The thickness of the board is 1.6mm.
It provides structural strength and durability.
Minimum line spacing is 0.35µm for precise routing.
The base material is FR-4, a common industry standard.
FR-4 offers good insulation and heat resistance.
Each board is tested using the fly needle method.
This ensures electrical performance and reliability.
It complies with standard automotive testing protocols.
The design is simple and easy to install.
It fits well in compact automotive systems.
Suitable for basic circuit integration in vehicles.
Manufactured by Dongguan Xinrongxing Technology.
The company focuses on reliable PCB production.
● Multilayer routing increases component density by 3–5 times, enabling integration of many chips in a limited area.
● Ground and power layers reduce signal interference by 50%, improving reliability for high-speed 5G RF applications.
● Compared to multiple single-layer boards, weight is reduced by 30%–50%, making it more suitable for mobile devices and aerospace.
● Using 6–8 layers, smart devices reduce internal volume by 60%, enabling compact and functional product designs.
● High-frequency materials support up to 7GHz signals, making the board suitable for radar and communication systems.
● Embedded metal cores or thermal vias increase heat dissipation efficiency up to five times, ensuring better thermal control.
● Offers HASL, immersion gold, flash gold, silver plating, and OSP for better conductivity and solderability.
● OSP finish provides protection against oxidation and improves performance during soldering in assembly.
● Affordable manufacturing is available even for small quantities, suitable for prototypes and short-run production needs.
● Allows startups and small projects to access professional-grade PCBs without high initial costs.
● Offers integrated services covering PCB design, production, and testing from one source.
● Simplifies the supply chain and shortens lead times by handling all steps through a single provider.

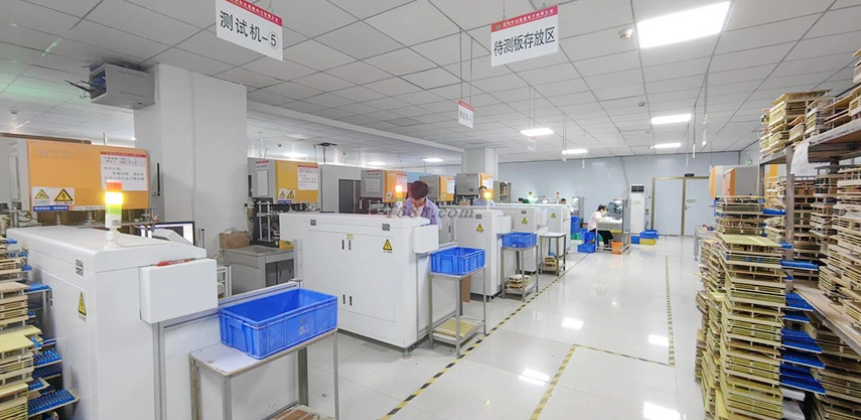

Dongguan Xinrongxing Technology Co., Ltd. has an experienced technical team offering comprehensive services from design, manufacturing to maintenance.Equipped with advanced production equipment, rigorous production processes, and has excellent product quality, being a leader in the industry.

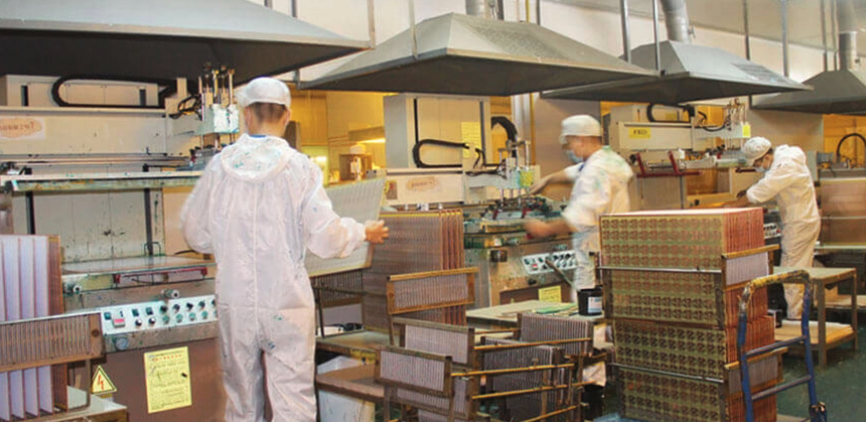

Adopts advanced production processes and high - quality raw materials to ensure product stability and reliability.
Uses high - precision production equipment and strict quality control to make circuit board accuracy reach international standards.
Capable of producing various specifications of circuit boards to meet different customers' needs.
Customized servicesProvides customized services to design and produce circuit boards according to customer requirements.
A: The boards offer high integration, stable signal performance, and reliable thermal control, meeting the requirements of modern automotive electronic systems.
A: Yes, Dongguan Xinrongxing Technology provides low MOQ options with competitive pricing, making it ideal for small-scale or prototype projects.
A: HASL, Immersion Gold, Immersion Tin, Immersion Silver, OSP, Hard Gold, Soft Gold, and more.
A: POE focuses on turnkey services. For a turnkey order, we require a Bill of Materials (BOM), and board designs in Gerber or ODB++ format. Fabrication or assembly drawings and any special instructions are also helpful. If your design is not complete, we can offer preliminary quotes based on early Gerber files.
A: This file includes information on where each component is placed on the PCB, including x-y coordinates, rotation, layer, reference designator, and part value or package.
