Have you ever wondered what makes a PCB reliable? Choosing the right PCB material is crucial for performance and longevity. In this article, we’ll explore various PCB material types, including FR-4, CEM-1, and aluminum PCBs. You’ll learn their unique properties, applications, and how to select the best option for your needs.
Table of Contents
FR-4 is the most widely used PCB material, renowned for its excellent balance of performance, cost, and versatility. It consists of woven fiberglass cloth combined with an epoxy resin binder, making it both mechanically strong and electrically insulating. The flame-retardant properties of FR-4 are certified under UL 94 V-0, ensuring safety in various applications.
One of the standout features of FR-4 is its glass transition temperature (Tg), typically ranging from 130°C to 180°C. This high Tg allows it to withstand lead-free soldering processes and high-power applications without degrading. Additionally, FR-4 exhibits low moisture absorption, typically around 0.1% to 0.3%, which helps maintain its electrical properties and mechanical integrity in humid conditions.
FR-4's versatility makes it suitable for a wide range of electronic applications. It is commonly used in consumer electronics, automotive systems, telecommunications equipment, and industrial controls. The material is ideal for both single-layer and multi-layer PCBs, accommodating various circuit designs and complexities.
For instance, FR-4 is the go-to choice for devices like smartphones, laptops, and home appliances. Its reliability and economic efficiency make it a preferred option for manufacturers looking to balance performance with cost.
Advantages:
Cost-Effective: FR-4 is relatively inexpensive compared to other high-performance materials, making it accessible for various applications.
Mechanical Strength: The woven fiberglass structure provides excellent strength and durability, suitable for demanding environments.
Good Electrical Insulation: FR-4 offers excellent dielectric properties, ensuring reliable signal integrity in electronic circuits.
Flame Retardancy: Its UL 94 V-0 rating ensures safety in applications where fire resistance is critical.
Disadvantages:
Thermal Limitations: While FR-4 can handle moderate temperatures, it may not be suitable for high-temperature applications compared to other materials like polyimide.
Moisture Sensitivity: Although it has low moisture absorption, prolonged exposure to high humidity can still affect its performance over time.
Limited High-Frequency Performance: For applications requiring very high frequencies, materials like Rogers or PTFE may be more suitable due to lower dielectric losses.
In conclusion, FR-4 remains a staple in PCB manufacturing due to its balanced properties, making it an excellent choice for various electronic applications. When selecting materials for PCB projects, understanding the characteristics and limitations of FR-4 is crucial for achieving optimal performance.
Tip: When designing PCBs with FR-4, always consider the thermal and moisture environments they will operate in to ensure long-term reliability.

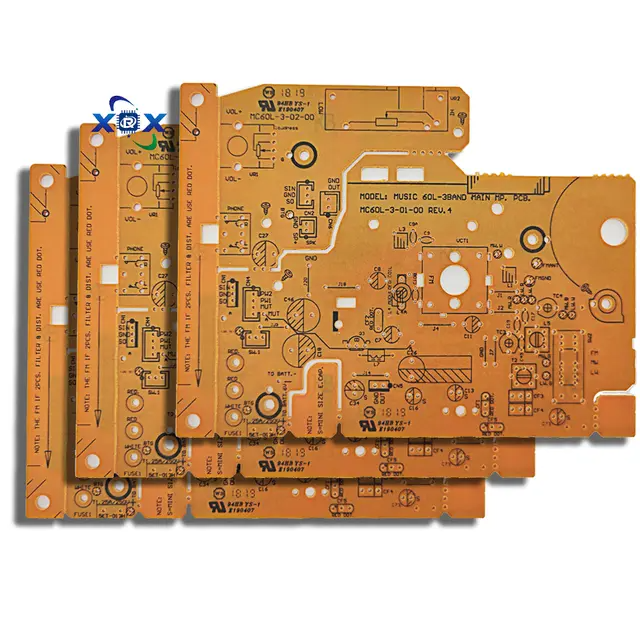

CEM-1, or Composite Epoxy Material 1, is a cost-effective PCB material primarily used for single-layer boards. It consists of a paper-based core that is reinforced with woven fiberglass on the outer layers. This unique composition provides a balance between mechanical strength and electrical insulation. CEM-1 is known for its flame-retardant properties, earning it a UL 94 V-0 rating, which ensures safety in electronic applications.
In terms of thermal performance, CEM-1 has a glass transition temperature (Tg) ranging from 110°C to 130°C. While this is lower than that of FR-4, it is still adequate for many basic electronics applications. However, CEM-1's moisture absorption is higher than that of FR-4, making it less suitable for environments with high humidity.
CEM-3 is often viewed as an upgrade from CEM-1, designed to offer better performance while still being cost-effective. Like CEM-1, CEM-3 is made from an epoxy resin and fiberglass, but it features a finer glass weave and a slightly different resin formulation. This results in improved mechanical strength and thermal stability compared to CEM-1.
Both materials are flame-retardant and suitable for double-sided PCB designs. However, the key differences lie in their applications and performance. CEM-1 is typically used for simpler, lower-cost applications, while CEM-3 is preferred for more demanding environments where additional strength and thermal performance are necessary.
CEM-1 and CEM-3 materials are widely used in various applications due to their affordability and reliable performance. Common uses include:
Consumer Electronics: Ideal for low-cost devices like remote controls, toys, and basic appliances.
Telecommunications: Used in basic communication equipment where high performance is not critical.
Industrial Controls: Suitable for applications that require moderate thermal and mechanical performance.
Manufacturers often choose CEM materials to balance cost and performance, making them attractive for projects with budget constraints. While they may not offer the same level of performance as FR-4 or specialized materials, their versatility and cost-effectiveness make them a popular choice in many industries.
Tip: When selecting between CEM-1 and CEM-3, consider the application's thermal and mechanical requirements to ensure optimal performance and reliability.
Polyimide is a premium PCB material known for its exceptional thermal stability and flexibility. It is made from a polymer that can withstand high temperatures, typically up to 260°C or even higher in some formulations. This makes polyimide an ideal choice for applications that operate in extreme environments, where other materials might degrade or lose their structural integrity.
The unique properties of polyimide include excellent dielectric strength, low moisture absorption, and outstanding chemical resistance. This combination allows polyimide PCBs to maintain performance in harsh conditions, making them suitable for various high-performance applications.
Polyimide PCBs find extensive use in industries where reliability and performance are critical. In aerospace, these boards are used in avionics, satellite systems, and other high-altitude applications. The ability to withstand extreme temperatures and environmental conditions is vital in these settings, where failure is not an option.
In the medical field, polyimide PCBs are increasingly used in devices such as diagnostic equipment, imaging systems, and wearable health monitors. Their flexibility allows for innovative designs that can fit into compact spaces while ensuring reliable performance. The biocompatibility of polyimide also makes it suitable for medical devices that may come into contact with the human body.
One of the primary advantages of polyimide PCBs is their ability to maintain performance at elevated temperatures. This is crucial for applications involving high-power electronics or environments with significant heat generation. Unlike other materials, polyimide does not lose its mechanical properties or electrical insulation capabilities even when subjected to prolonged high temperatures.
Additionally, polyimide's low thermal expansion coefficient reduces the risk of warping or delamination during thermal cycling, which is common in many electronic applications. This stability ensures that the circuits remain intact and functional, even under extreme conditions.
Moreover, polyimide materials can be manufactured in various thicknesses and configurations, allowing for flexibility in design. This adaptability makes polyimide a preferred choice for engineers looking to create compact, high-density circuits without compromising on performance.
Tip: When designing PCBs with polyimide, ensure to consider the specific thermal and environmental conditions of the application to fully leverage its high-performance capabilities.
Metal core PCBs (MCPCBs) are designed to efficiently manage heat, making them ideal for applications that generate significant thermal energy. Unlike traditional FR-4 boards, which have limited thermal conductivity, metal core PCBs utilize a metal substrate—usually aluminum or copper—to facilitate superior heat dissipation.
The primary advantage of using aluminum or copper as a base layer is their excellent thermal conductivity. Aluminum typically has a thermal conductivity ranging from 200 to 250 W/m·K, while copper can exceed 400 W/m·K. This high thermal conductivity helps to quickly transfer heat away from critical components, reducing the risk of overheating and extending the lifespan of electronic devices.
Additionally, metal core PCBs can be designed with thicker copper layers, which further enhances their ability to handle high currents and dissipate heat effectively. This characteristic is particularly beneficial in applications such as LED lighting, where heat management is crucial for maintaining performance and reliability.
MCPCBs are widely used in LED lighting applications due to their ability to manage heat effectively. LEDs generate a significant amount of heat during operation, and if not dissipated properly, this heat can lead to decreased brightness and shortened lifespan. By integrating metal core technology, manufacturers can ensure that the heat generated by the LEDs is efficiently transferred away from the light source, resulting in brighter, more reliable lighting solutions.
In power supply applications, metal core PCBs are also becoming increasingly popular. They allow for more compact designs while effectively handling the thermal loads associated with high-power components. For instance, power amplifiers, converters, and inverters benefit from the thermal management capabilities of MCPCBs, enabling them to operate at higher efficiencies without overheating.
When deciding between aluminum and copper core PCBs, it's essential to consider the specific requirements of the application.
Aluminum Core PCBs:
Cost-Effective: Aluminum is generally less expensive than copper, making aluminum core PCBs a more budget-friendly option.
Lightweight: Aluminum is lighter than copper, which can be advantageous in applications where weight is a concern, such as automotive and aerospace industries.
Good Thermal Performance: While not as conductive as copper, aluminum still offers excellent thermal management for most standard applications.
Copper Core PCBs:
Superior Thermal Conductivity: Copper outperforms aluminum in thermal conductivity, making it the preferred choice for high-power applications that generate significant heat.
Higher Mechanical Strength: Copper provides better mechanical properties, which can be beneficial in demanding environments where durability is critical.
More Suitable for High-Frequency Applications: Copper core PCBs can support higher frequency signals with lower loss, making them ideal for RF and microwave applications.
In summary, the choice between aluminum and copper core PCBs depends on the specific needs of the application, including thermal management, mechanical strength, and budget considerations.
Tip: Evaluate the thermal requirements of your application carefully, as selecting the right metal core material can significantly impact the performance and reliability of your PCB.
Ceramic PCBs are known for their exceptional thermal conductivity and electrical insulation properties, making them ideal for high-performance applications. These boards typically utilize materials such as aluminum oxide (Al2O3) or aluminum nitride (AlN) as substrates.
One of the standout features of ceramic PCBs is their high thermal conductivity, often exceeding 150 W/m·K, which is significantly higher than traditional materials like FR-4. This property allows for effective heat dissipation, crucial for components that generate substantial heat during operation. The ability to manage heat effectively extends the lifespan of electronic devices and enhances performance.
In addition to thermal conductivity, ceramic materials provide excellent dielectric strength and low moisture absorption. This means they maintain their electrical properties even in humid environments, reducing the risk of failure due to moisture-related issues. The high melting point of ceramics also ensures stability under extreme thermal conditions, making them suitable for applications where other materials might degrade.
Ceramic PCBs are particularly valuable in industries where reliability is paramount, such as aerospace, military, and high-power electronics. In aerospace applications, these boards are used in satellite systems, avionics, and other equipment that must operate under harsh conditions, including extreme temperatures and radiation exposure.
In the military sector, ceramic PCBs are employed in communication devices, radar systems, and weaponry, where durability and performance are critical. Their ability to withstand high temperatures and mechanical stress makes them ideal for high-power electronics, such as power amplifiers and RF devices.
Moreover, ceramic PCBs are increasingly utilized in LED lighting applications. The high thermal conductivity helps manage heat generated by LEDs, ensuring optimal performance and longevity. This is particularly important in high-brightness LED applications where excessive heat can lead to reduced light output and lifespan.
The advantages of ceramic PCBs in high-power electronics are numerous. First, their superior thermal conductivity allows for efficient heat management, which is essential in preventing thermal runaway and ensuring the reliability of power devices. This characteristic is particularly beneficial in applications such as power supplies, where high currents can generate significant heat.
Second, ceramic materials exhibit excellent mechanical strength, making them resistant to warping and cracking under stress. This durability ensures that the PCB maintains its integrity throughout its operational life, even in demanding environments.
Third, the low dielectric loss of ceramic materials contributes to signal integrity, making them suitable for high-frequency applications. This is crucial in RF and microwave circuits, where maintaining signal quality is essential for performance.
Finally, the inherent chemical resistance of ceramics allows them to withstand exposure to harsh chemicals and environments, further enhancing their reliability in critical applications.
Tip: When designing PCBs for high-power applications, consider ceramic materials for their superior thermal management and mechanical strength, ensuring optimal performance and longevity.
Rogers PCB materials are specifically designed for high-frequency applications, making them a top choice for industries like telecommunications, aerospace, and defense. These materials, often made from PTFE (polytetrafluoroethylene) or other advanced composites, exhibit excellent dielectric properties, low loss characteristics, and superior thermal stability.
One of the standout features of Rogers materials is their low dielectric constant (Dk), which typically ranges from 2.2 to 10.2 depending on the specific material grade. This low Dk is crucial for minimizing signal loss and distortion in high-frequency circuits. Additionally, Rogers materials have a low dissipation factor (Df), which further enhances their ability to maintain signal integrity over long distances and at high speeds.
The thermal stability of Rogers materials is also noteworthy, with glass transition temperatures (Tg) often exceeding 280°C. This makes them suitable for applications that require reliable performance under extreme conditions, such as in satellite communications or high-speed data transmission.
Rogers PCB materials are widely used in telecommunications and RF devices due to their superior performance at high frequencies. Common applications include:
Antenna Design: Rogers materials are often used in the fabrication of antennas for mobile devices, satellites, and base stations. Their low Dk allows for efficient signal propagation, which is critical in maintaining connectivity and data transmission quality.
Microwave Circuits: Many microwave circuits, which operate in the GHz range, utilize Rogers materials for their ability to handle high-frequency signals with minimal loss. This includes components like filters, amplifiers, and oscillators.
RFID Tags: The low-loss characteristics of Rogers materials make them ideal for RFID (Radio Frequency Identification) tags, which require reliable performance for data transmission over varying distances.
5G Technology: As 5G technology continues to roll out, the demand for high-frequency PCBs has surged. Rogers materials play a key role in supporting the infrastructure needed for 5G networks, ensuring high-speed data transfer and connectivity.
While Rogers materials offer exceptional performance, they come at a higher cost compared to traditional PCB materials like FR-4. This cost is justified in applications where signal integrity and thermal performance are critical.
When considering Rogers materials for a project, it’s essential to weigh the benefits against the budget. For high-performance applications where failure is not an option, investing in Rogers PCBs can lead to significant long-term savings by reducing maintenance costs and improving product reliability.
Conversely, for less demanding applications, using more economical materials may be a viable option. Engineers should assess the specific requirements of their projects and consult with PCB manufacturers to determine the most suitable material for their needs.
Tip: When designing RF circuits with Rogers materials, ensure to account for the specific dielectric properties of the chosen material to optimize performance and minimize signal loss.
Thermal management is a critical factor in PCB design, especially in applications with high power consumption. When selecting PCB materials, it is essential to assess the thermal performance requirements of your circuit. High thermal conductivity materials, such as metal core PCBs or ceramic substrates, can effectively dissipate heat, preventing overheating and ensuring optimal performance. Consider the maximum operating temperature and the heat generated by components to select a material that can handle these conditions without degrading.
The mechanical strength of PCB materials is vital for ensuring durability and reliability in various applications. Depending on the environment in which the PCB will operate, you may need materials that can withstand mechanical stress, vibrations, and impacts. For instance, aerospace and automotive applications often require high-strength materials to endure harsh conditions. Evaluate the specific mechanical requirements of your project, such as the need for flexibility or rigidity, to choose the appropriate material that will maintain structural integrity throughout its operational life.
Signal integrity is crucial in high-frequency applications, where the choice of PCB material can significantly impact performance. Materials with low dielectric constants (Dk) and low dissipation factors (Df) are preferred for high-speed circuits, as they minimize signal loss and distortion. For instance, Rogers materials are designed for high-frequency applications, offering excellent dielectric properties. Assess the frequency requirements of your application and choose materials that can support the necessary signal performance while maintaining quality and reliability.
Tip: Always consider the specific thermal, mechanical, and electrical requirements of your PCB application to ensure optimal performance and longevity.
This article explored various PCB materials, including FR-4, CEM-1, aluminum, and more. Each material has unique properties, advantages, and applications. FR-4 is cost-effective and versatile, while CEM-1 is suitable for basic applications. Aluminum PCBs excel in heat dissipation, making them ideal for high-power devices. Selecting the right material depends on the specific thermal, mechanical, and electrical requirements of your project. For tailored solutions, consider consulting experts like Xinrongxing. Their products offer exceptional performance and reliability for your PCB needs.
A: PCB material refers to the substrates used to create printed circuit boards, essential for ensuring electrical insulation and mechanical stability in electronic devices.
A: FR-4 is cost-effective and versatile, making it more suitable for a wide range of applications compared to materials like CEM-1 or polyimide.
A: Aluminum PCBs provide superior heat dissipation, making them ideal for high-power applications like LED lighting and power supplies.
A: Rogers PCB materials offer low dielectric loss and excellent thermal stability, ensuring signal integrity in high-frequency circuits.
A: The cost of PCB materials is influenced by performance characteristics, such as thermal conductivity and frequency capabilities, as well as material type.
