XRX-1202
DGXRX

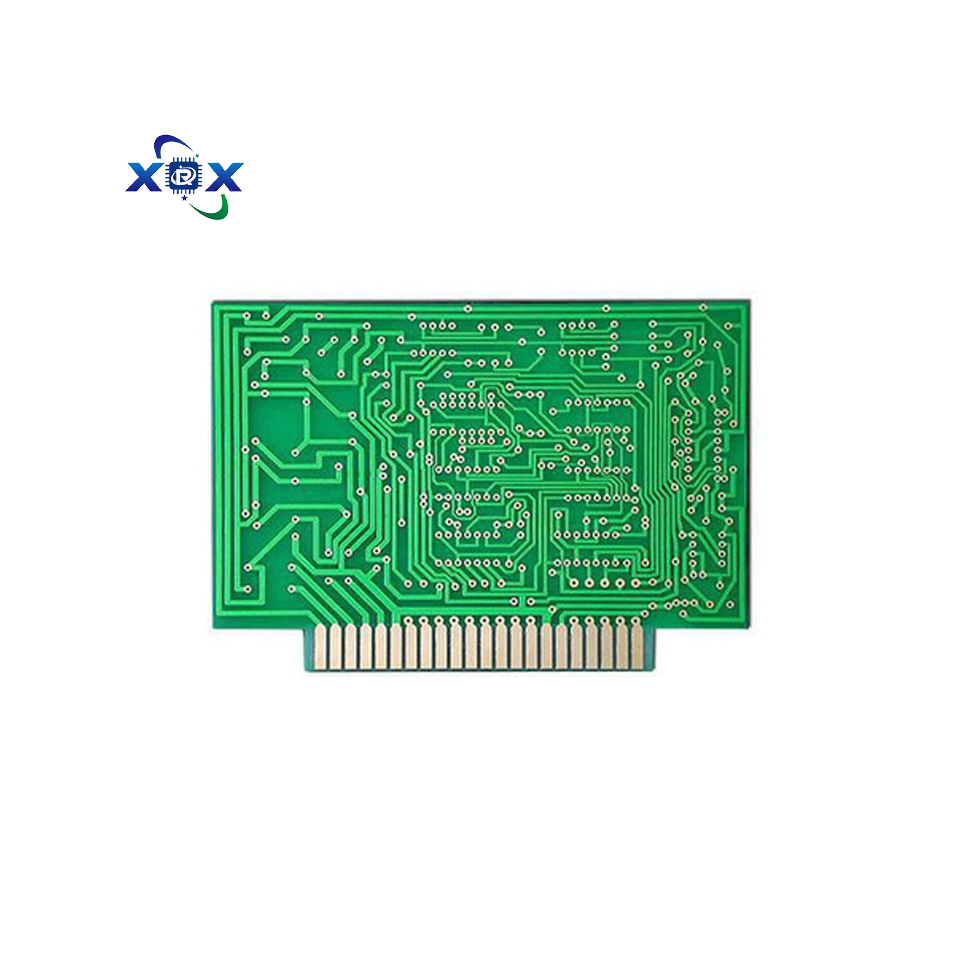

Our Factory Custom FR-4/CEM-1/94V0 Single-sided Printed Circuit Boards (PCBs) for Home Appliances are meticulously designed to meet the rigorous demands of modern household electronic devices. These single-sided PCBs are crafted using high-quality materials such as FR-4, CEM-1, and 94V0, which are renowned for their excellent electrical insulation, mechanical strength, and flame retardancy.
Single-sided PCBs feature a single layer of conductive copper on one side of the insulating substrate, making them a cost-effective solution for home appliances that do not require highly complex circuitry. We offer customizations in terms of board size, thickness, copper weight, and surface finishes to ensure that the PCBs perfectly fit the specific requirements of various home appliances, from small kitchen gadgets to large household devices.
Superior Material Selection: The use of FR-4, CEM-1, and 94V0 materials ensures that these PCBs have outstanding electrical properties, including low dielectric loss and high breakdown voltage, which are crucial for the reliable operation of home appliances. FR-4 provides excellent mechanical strength and dimensional stability, while CEM-1 offers a good balance of cost and performance. The 94V0 rating indicates that the boards have excellent flame retardant properties, reducing the risk of fire in case of electrical faults.
Precision Manufacturing: Our state-of-the-art manufacturing processes ensure precise trace widths and spaces, accurate hole drilling, and consistent surface finishes. This precision guarantees reliable electrical connections and optimal signal transmission, minimizing the chances of short circuits or signal interference in home appliances.
Cost-Effective Solution: Single-sided PCBs are more affordable than their double-sided or multi-layer counterparts, making them an ideal choice for home appliances where the circuitry does not require excessive complexity. Despite the lower cost, our boards do not compromise on quality, ensuring long-lasting performance.
Customization Options: We understand that each home appliance has unique requirements. Therefore, we offer a wide range of customization options, including different board thicknesses (ranging from 0.5mm to 2.0mm), copper weights (from 1oz to 3oz), and surface finishes such as HASL (Hot Air Solder Leveling), ENIG (Electroless Nickel Immersion Gold), and OSP (Organic Solderability Preservative).
These single-sided PCBs are widely used in various home appliances, including:
Kitchen Appliances: Such as microwaves, ovens, refrigerators, and dishwashers. In these devices, the PCBs control the operation of motors, sensors, and displays, ensuring smooth and efficient performance.
Laundry Appliances: Washing machines and dryers rely on PCBs to manage the control systems, including timing, water level sensing, and motor speed regulation.
Small Household Devices: Electric fans, air purifiers, vacuum cleaners, and hair dryers use these PCBs to control their functions, such as speed adjustment, temperature control, and safety features.
Home Entertainment Systems: Audio systems, televisions, and set-top boxes may also incorporate these PCBs for signal processing and control.
Q: What is the minimum order quantity for these PCBs?
A: The minimum order quantity varies depending on the specific requirements of the product. Please contact our sales team for more detailed information.
Q: What is the typical lead time for production?
A: Generally, the lead time is around 10-15 working days for standard orders. However, it may be longer for customized orders with special requirements.
Q: Do you provide any certifications for these PCBs?
A: Yes, our PCBs comply with international standards such as RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals), ensuring environmental friendliness and safety.
Q: Can you help with the design of the PCB for my home appliance?
A: Yes, we have a team of experienced engineers who can assist with the design process, from concept to prototype and final production.
