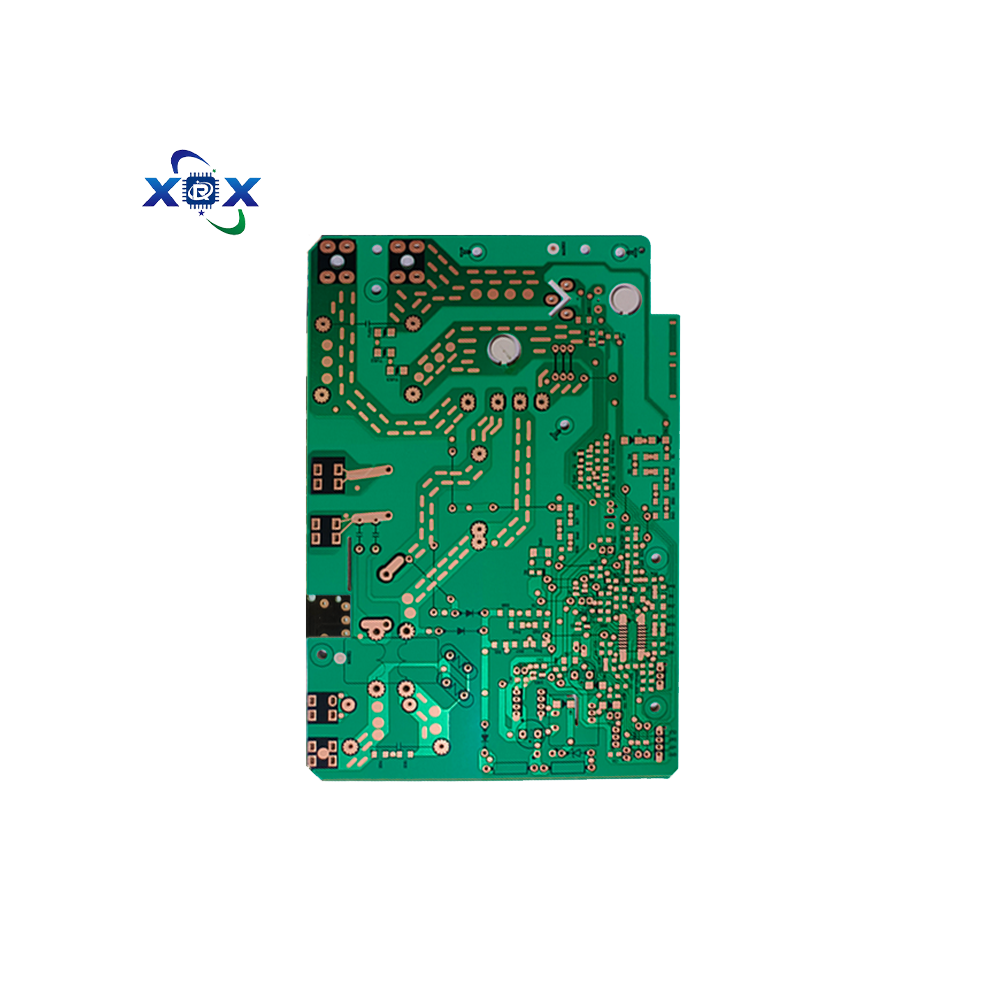

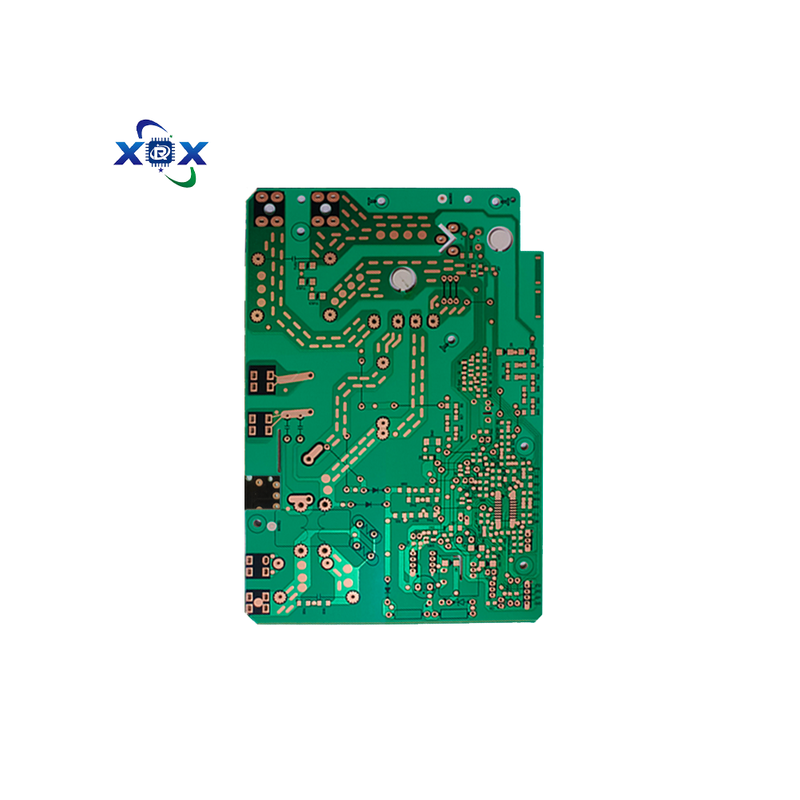

As a leading Factory Custom FR-4/94V0/FR-1/CEM-1/22F single-sided circuit board production manufacturer, we specialize in delivering high-quality, reliable single-sided PCBs that meet the diverse needs of various industries. Our extensive range of materials, including FR-4, 94V0, FR-1, CEM-1, and 22F, allows us to provide customized solutions for different applications, from simple consumer electronics to more demanding industrial devices.
Single-sided circuit boards are a popular choice for many applications due to their simplicity and cost-effectiveness. They consist of a single layer of copper foil on one side of an insulating substrate, making them suitable for circuits that do not require complex interconnections. Our manufacturing capabilities enable us to produce boards in various sizes, thicknesses, and with different surface finishes, ensuring that we can meet the unique requirements of our customers.
Diverse Material Options: The use of FR-4, 94V0, FR-1, CEM-1, and 22F materials provides a wide range of properties to suit different applications. FR-4 is known for its high strength and good electrical insulation, while FR-1 is a cost-effective flame retardant material. 94V0 offers excellent fire resistance, CEM-1 provides a balance of performance and cost, and 22F is a flexible material suitable for certain applications.
High-Quality Manufacturing: We employ advanced manufacturing techniques, including automated optical inspection (AOI), to ensure the highest level of quality in our circuit boards. Our strict quality control processes ensure that each board meets or exceeds industry standards, with low defect rates and reliable performance.
Customization Flexibility: We understand that every customer has unique needs. Therefore, we offer a high degree of customization, including board size (from small modules to large panels), thickness (0.2mm to 3.2mm), copper thickness (0.5oz to 5oz), and surface finishes such as HASL, ENIG, and Immersion Tin. We can also accommodate special requirements such as blind vias, buried vias, and heavy copper boards.
Fast Turnaround Time: With our efficient production processes and streamlined supply chain, we are able to offer fast turnaround times without compromising on quality. This is especially important for customers who need their products quickly for prototyping or mass production.
Our single-sided circuit boards are used in a wide variety of applications across different industries, including:
Consumer Electronics: Mobile phones, tablets, laptops, and digital cameras often use single-sided PCBs for their simpler circuits, such as power management, audio processing, and display control.
Industrial Electronics: Industrial control systems, motor drivers, and sensors rely on our PCBs for their reliability and durability in harsh environments. The flame retardant materials we use are particularly suitable for industrial applications where safety is a top priority.
Automotive Electronics: In-vehicle electronics such as car radios, dashboard displays, and lighting systems use our PCBs, which are designed to withstand the vibrations, temperature variations, and electrical noise present in automotive environments.
Medical Devices: Simple medical instruments like blood pressure monitors, glucose meters, and thermometers often use single-sided PCBs due to their cost-effectiveness and reliability.
Q: What is your quality control process?
A: We have a comprehensive quality control process that includes incoming material inspection, in-process quality checks, and final product testing. We use AOI, X-ray inspection, and electrical testing to ensure the quality of our boards.
Q: Can you produce boards with special surface finishes?
A: Yes, we can provide a variety of surface finishes to meet your specific needs, including lead-free options for environmental compliance.
Q: What is the maximum board size you can produce?
A: We can produce single-sided circuit boards up to a maximum size of 1200mm x 1000mm, depending on the material and thickness requirements.
Q: Do you offer prototyping services?
A: Yes, we offer fast prototyping services for customers who need to test their designs before mass production. Our prototyping process is efficient and cost-effective, allowing you to get your samples quickly.
