XRX-1201
DGXRX

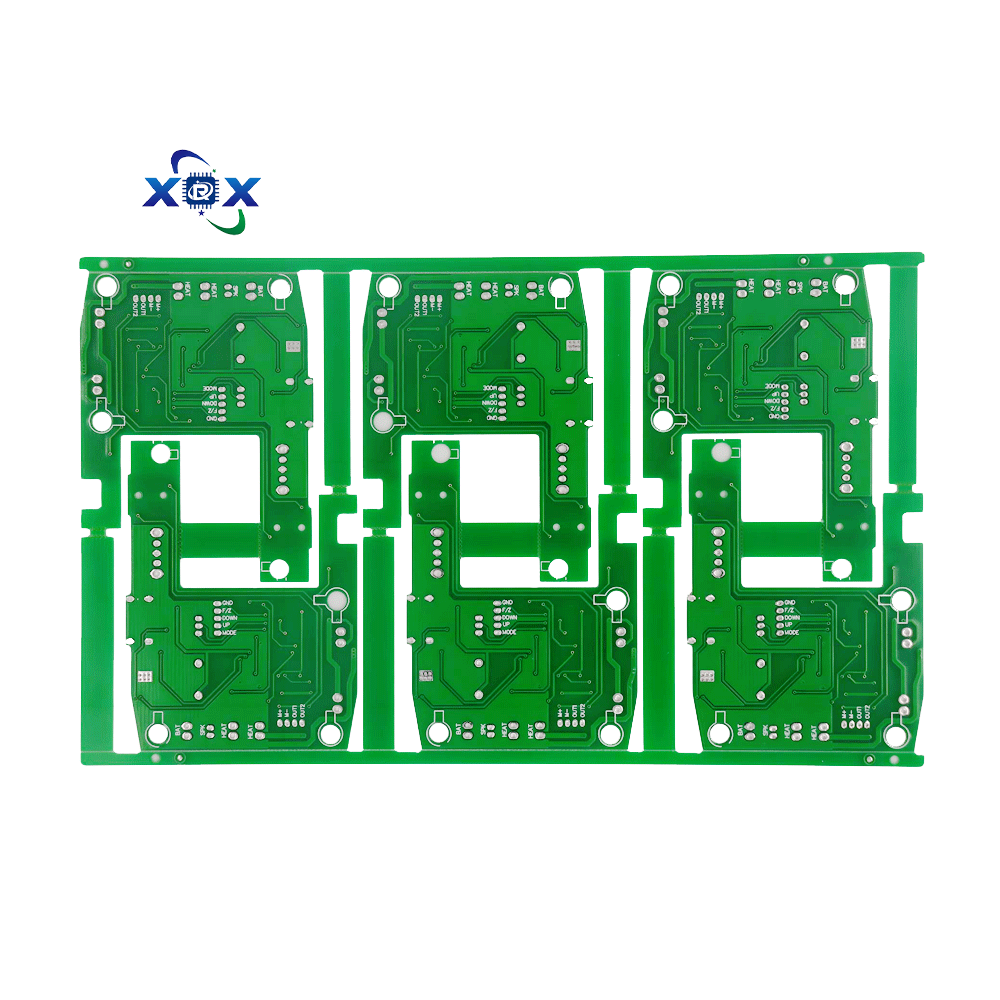

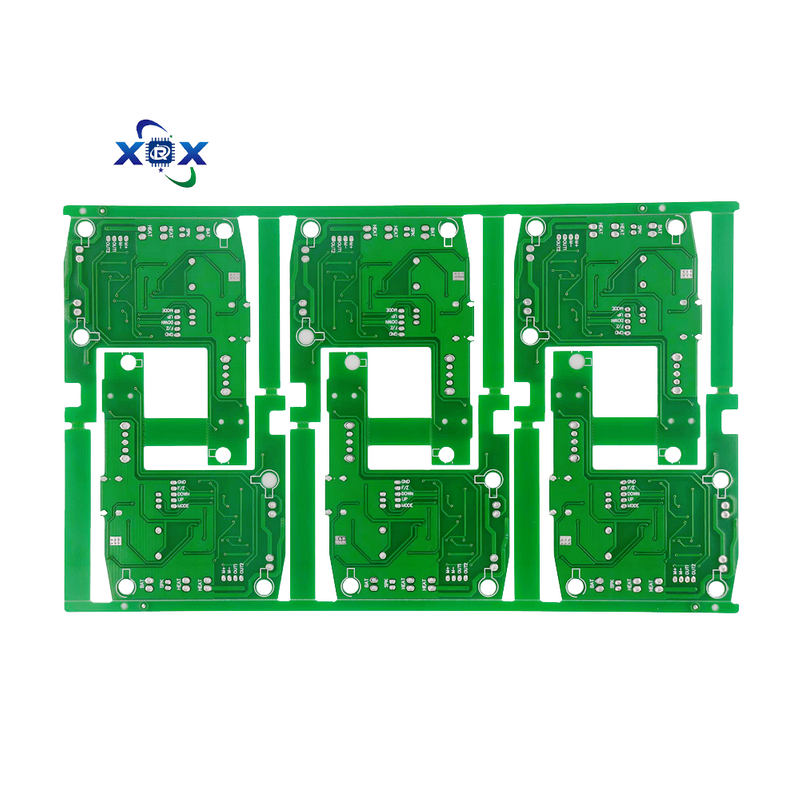

Our Factory Custom FR-1 Single-sided Printed Circuit Board Bare Board for Household Appliances is a cost-effective and reliable solution designed specifically for the needs of home appliance manufacturers. FR-1 is a flame retardant composite material made of paper and epoxy, which offers a good balance of performance, cost, and flame resistance, making it suitable for a wide range of household applications.
These single-sided bare boards feature a single layer of copper on one side of the FR-1 substrate, providing a simple and economical platform for the circuitry of household appliances. We offer customization in terms of board size, thickness, copper weight, and surface finishes, ensuring that the boards meet the specific requirements of different home appliances, from simple switches to more complex control systems.
Cost-effective FR-1 Material: FR-1 is a budget-friendly material that meets the UL 94V-0 flame retardant standard, making it a safe choice for household appliances where fire safety is a concern. Despite its lower cost, FR-1 offers adequate electrical insulation and mechanical strength for most home appliance applications.
Simple and Reliable Design: Single-sided bare boards are easy to fabricate and assemble, reducing both production time and costs. The simple design minimizes the risk of manufacturing defects, ensuring reliable performance in household appliances that are often used for long periods of time.
Customization for Household Needs: We understand that household appliances come in various sizes and have different circuitry requirements. Therefore, we offer custom board sizes, from small control panels to larger boards for complex appliances. We also provide options for different copper thicknesses (1oz to 2oz) to meet the current-carrying needs of the circuits.
Good Thermal and Moisture Resistance: FR-1 has good resistance to heat and moisture, which are common environmental factors in household environments. This ensures that the PCBs can operate reliably in kitchens, laundries, and other areas where they may be exposed to humidity and temperature changes.
These FR-1 single-sided bare boards are widely used in household appliances such as:
Small Kitchen Appliances: Toasters, coffee makers, blenders, and electric kettles use these PCBs for their control circuits, which manage functions such as temperature regulation, timer settings, and power on/off switches.
Home Heating and Cooling Devices: Thermostats, space heaters, and air conditioners rely on our PCBs to control the operation of motors, sensors, and displays, ensuring efficient and comfortable temperature control in the home.
Lighting Systems: Dimmable light switches, LED driver boards, and smart lighting control systems use FR-1 single-sided bare boards for their simple and cost-effective circuitry.
Security Devices: Home security systems such as doorbells, motion sensors, and alarm panels often incorporate these PCBs for their reliable and affordable performance.
Q: Is FR-1 suitable for high-temperature applications?
A: FR-1 has a relatively lower temperature resistance compared to materials like FR-4. It is suitable for applications where the operating temperature does not exceed 100°C, which is typical for most household appliances.
Q: Can you provide boards with pre-drilled holes for component mounting?
A: Yes, we can drill holes of various sizes and patterns according to your design specifications, making it easier for component assembly.
Q: What is the surface finish options for these bare boards?
A: We offer surface finishes such as HASL (lead-free and traditional), OSP, and bare copper (with or without anti-oxidation treatment), depending on your soldering and storage requirements.
Q: Do you offer bulk discounts for large orders?
A: Yes, we offer competitive pricing and bulk discounts for large quantity orders. Please contact our sales team for more information on pricing and discounts.
